ID # 38699669

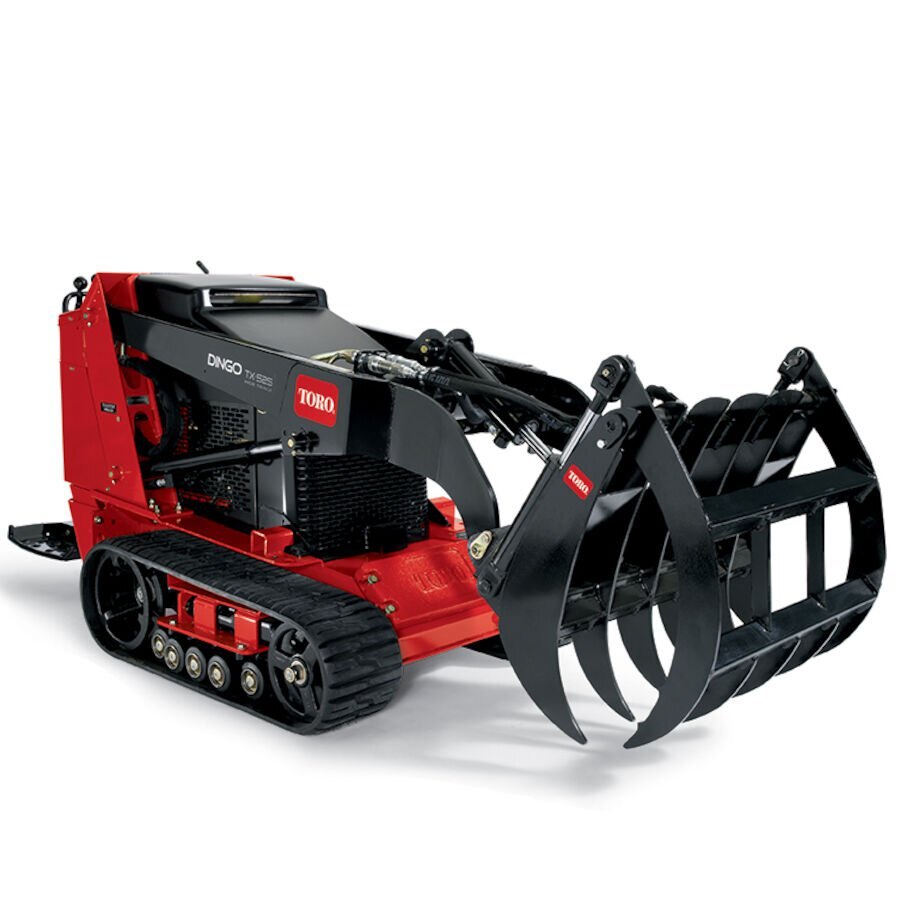

Grapple Rake

Dealer Price $4,760 USD
$4,284.00
Overview
  • Twin heavy-duty hydraulic cylinders
  • 35.5" (87.6 cm) width guarantees access to tight areas
  • Tines constructed of 3/8" (1 cm) AR400 steel*
  • Four greaseable pivots reduce wear

Overview

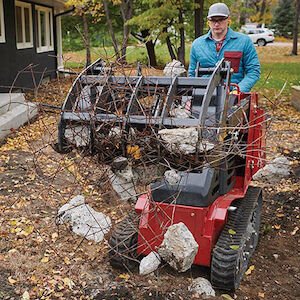

The Toro grapple rake attachment allows operators to grab, drag, lift, and place materials with ease. The grapple has two heavy-duty cylinders capable of producing 3000 pounds of clamping force at the tine tips, insuring you can "grab-ahold" and not let go.

Specifications
Model
22577
Category Name
Rentals
Year
2025
Sale Type
New
Manufacturer
Toro
Width
35.5 in. / 90.2 cm
Height
30 in. / 76.2 cm
Length
18 in. / 45. 7 cm
Models
Dingo 320-D, Dingo 323, Dingo TX 1000, Dingo TX 1000 TURBO, Dingo TX 1300, Dingo TX 427, Dingo TX 525, Dingo TX 700, eDingo 500
Weight
265 lbs / 120.2 kg
UPC/EAN
21038225777
Construction
Fabricated, welded steel barrel
Mounting Frame
Dingo® quick-attach mount plate, fabricated, welded base
Quick Couplers
Dripless, flush face quick couplers
features

Grapple RakeTines

Constructed of AR400* steel make the Toro grapple one of the strongest and most durable grapples on the market. Tines are spaced 7" (17.8 cm) apart while the bottom tine have 6 1/4" (15.9 cm) spacing, allowing the tines to intertwine to hold even the smallest loads tightly.
