ID # 38699675

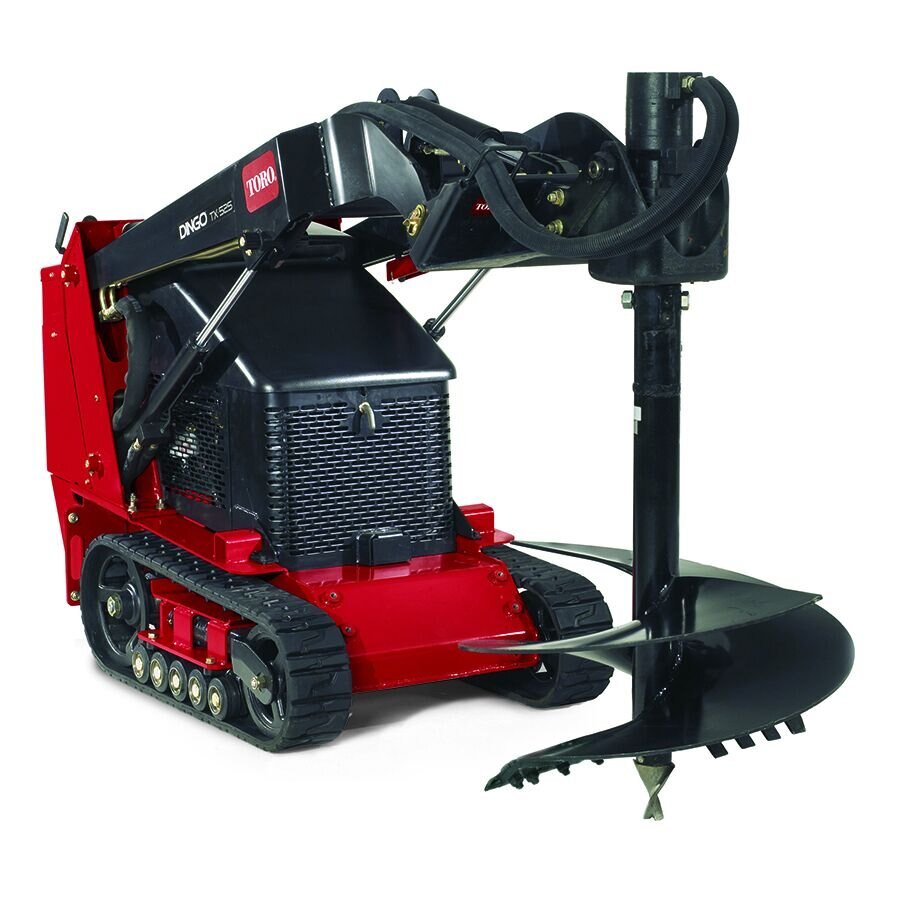

Universal Swivel Auger Power Head

Dealer Price $4,590 USD
$4,131.00
Overview
  • Pivots 15 degrees left to right to insure plumb holeson slopes or uneven terrain
  • Direct planetary drive
  • Recommended for bits up to 24" (61cm)

Overview

This attachment swivels in all directions to create plumb holes on uneven terrain. The higher speed of this auger power head is ideal for augers up to 24" (61cm) in diameter. Quickly change between auger bit sizes to dig holes for fence posts, footings, irrigation heads and more!

Specifications
Model
22806
Category Name
Rentals
Year
2025
Sale Type
New
Manufacturer
Toro
Shaft
2.6 in. / 6.6 cm
Width
24 in. / 60.9 cm
Height
23 in. / 58.4 cm
Length
17 in. / 42 cm
Models
Dingo 320-D, Dingo 323, Dingo TX 1000, Dingo TX 1000 TURBO, Dingo TX 1300, Dingo TX 427, Dingo TX 525, Dingo TX 700, eDingo 500
Torque
960 ft/lbs (1300 N) at 3000 psi (207 bar at 11 gpm)
Weight
196 lbs / 88.9 kg
UPC/EAN
21038228068
Auger Speed
86 rpm at 11 gpm (42 lpm)
Construction
Fabricated, welded steel frame
Mounting Frame
Dingo® quick-attach mount plate, fabricated, welded base
Quick Couplers
Dripless, flush face quick couplers
features

15° Universal Pivot

Power head swivels in all directions allowing the contractor to create plum holes on hills, slopes and uneven terrain regardless of the orientation of the traction unit. The side-to-side swing has a lockout in the centered position.

Planetary Gear Drive

The plantetary gear drive provides high speeds and maximum torque to the auger, while transmitting minimal stress on the auger head components. The planetary gear drive insures the longevity of the hydraulic motor.

High Speed Drive

The high speed drive provides maximum bit speed of 86 rpm, allowing the auger to dig holes very fast. The high speed drive delivers 960 ft-lbs torque and is fantastic for any contractor wanting to auger many holes in a short period of time in most ground conditions.
