ID # 39090147

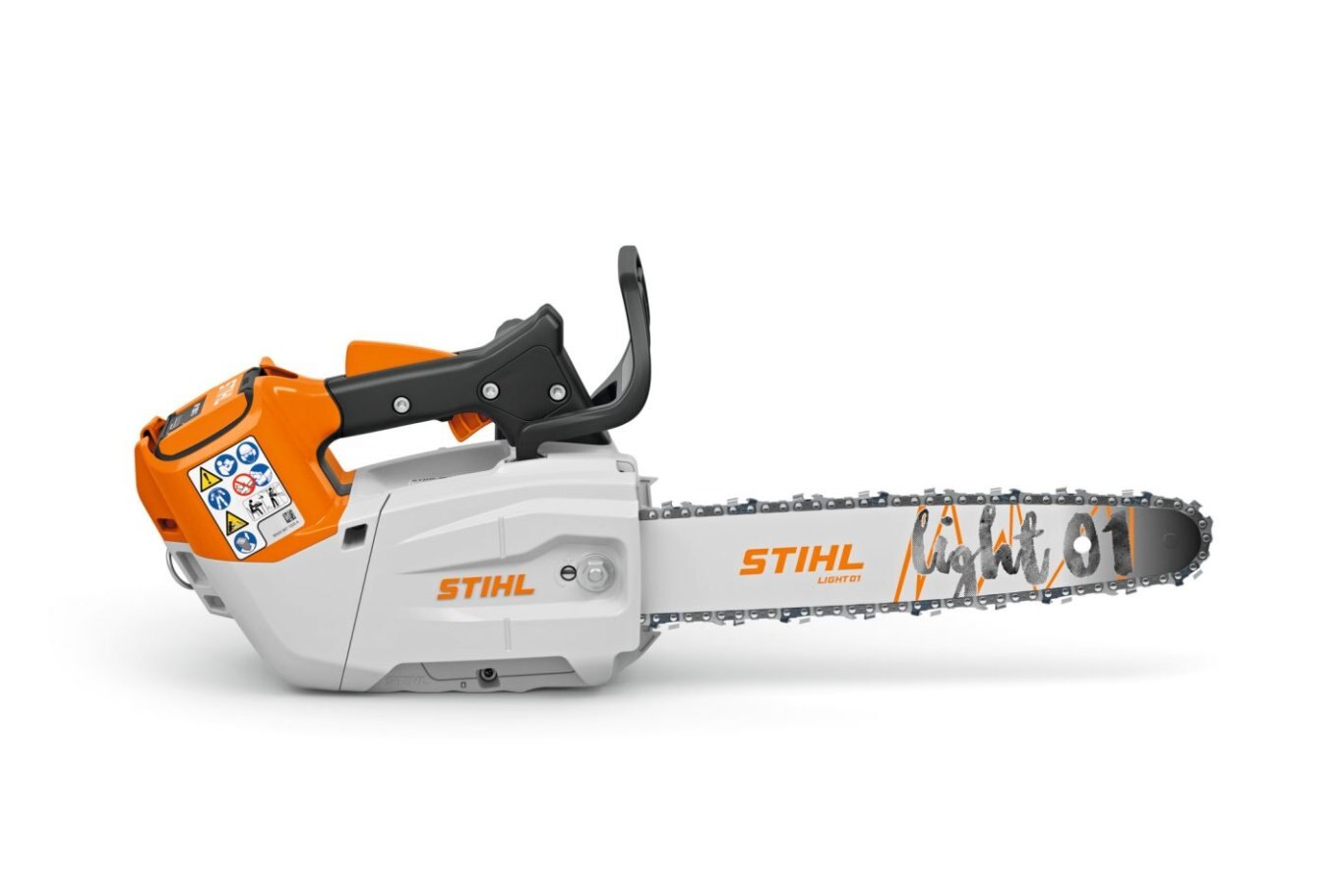

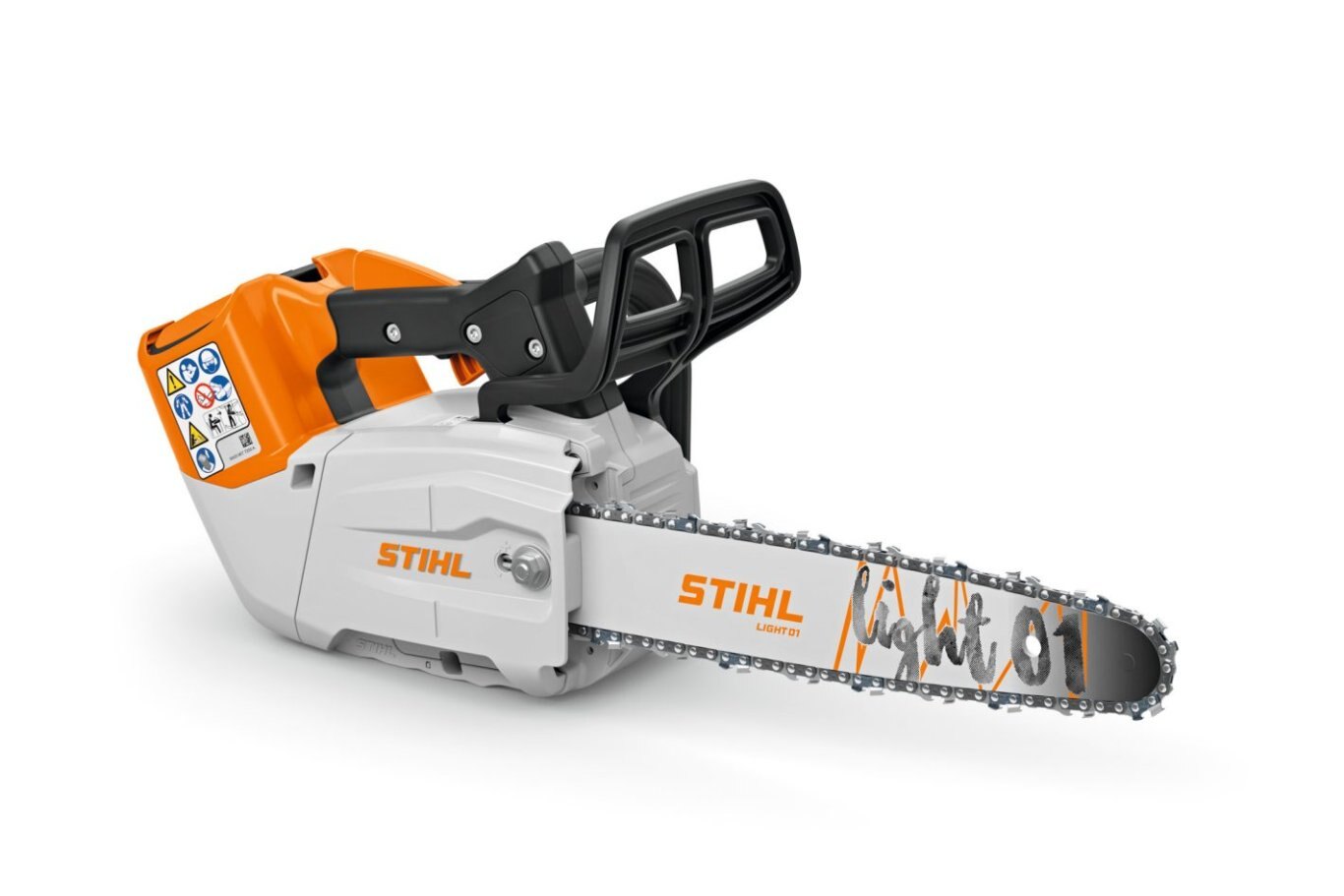

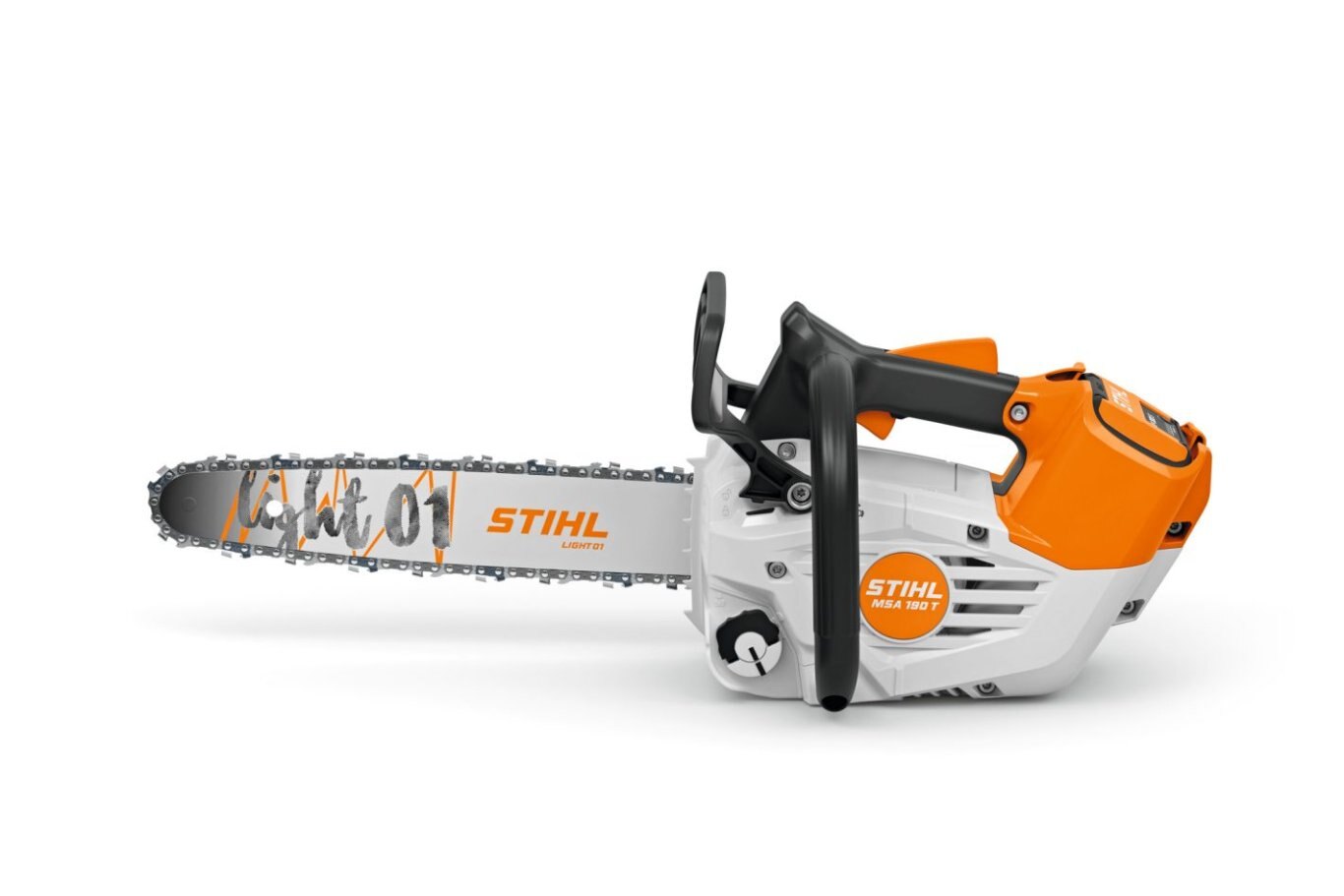

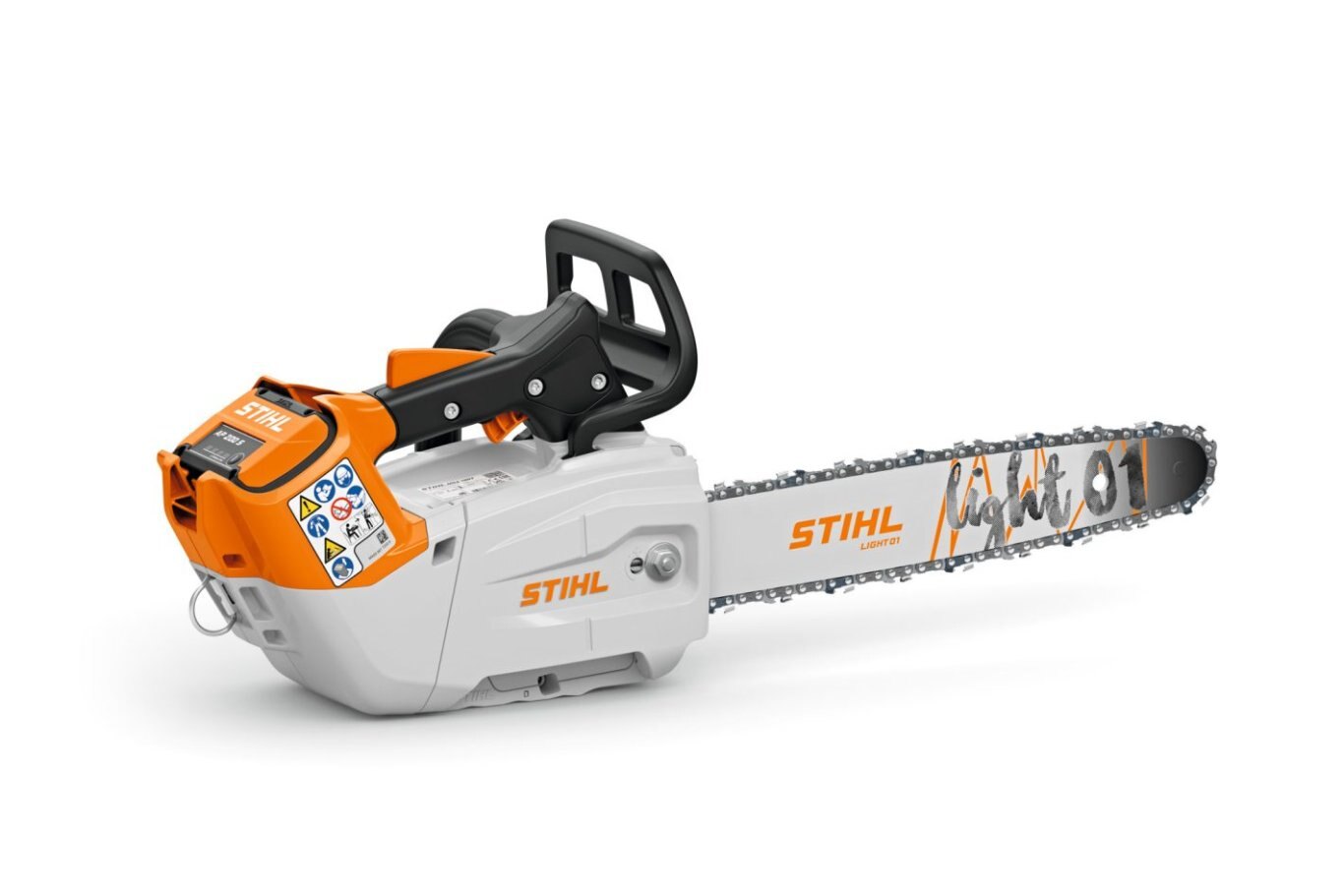

MSA 190 T 14 SET AP SERIES CHAINSAW 14" (AP 200 S BATTERY & AL 301 CHARGER)

Dealer Price $732.99 USD
Overview

Features

  • Lightweight professional cordless tree maintenance saw for noise-sensitive areas
  • Individual tool without battery or charger
  • For trained arborists
  • Excellent cutting performance and precise cut
  • Easy-to-handle thanks to low weight
Specifications
Model
MSA 190 T 14 SET
Category Name
Chainsaw
Year
2025
Sale Type
New
Manufacturer
Stihl
Power
1.20 kW 1)
Part No.
MA052000009
Bar Length
12 / 14 in 4)
IPX Rating
IPX4
Rated Voltage
36 V
Battery System
AP
Saw Chain Pitch
3/8"P
Sound Power Level
99 dB(A) 6)

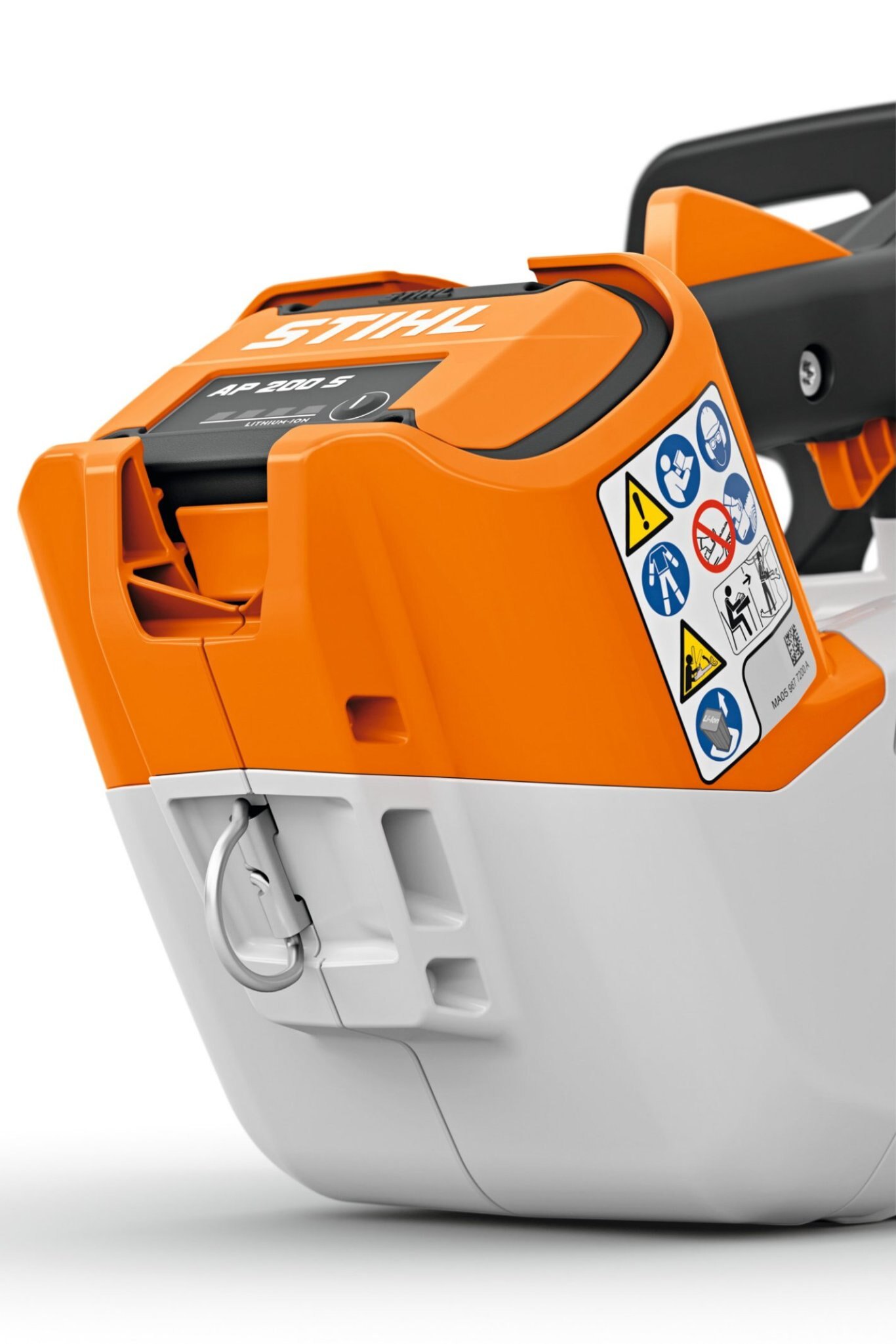

Recommended Battery
AP 200 S
Sound Pressure Level
91 dB(A) 6)
Vibration Level, Left
3.8 m/s² 7)
Vibration Level, Right
3.9 m/s² 7)
Device Weight Without Battery
2.6 kg 2)
System Weight Without Battery
3.08 / 3.15 kg 3)
Device Length With Bumper Spike
306 mm 2)
Max. Battery Working Time AP 200
48 min 5)
Max. Battery Working Time AP 200 S
48 min 5)
Max. Battery Working Time AP 300 S
75 min 5)
Max. Battery Working Time AP 500 S
90 min 5)
features

EC MOTOR

LOW-MAINTENANCE AND EFFICIENT. Thanks to its compact design, low weight and high efficiency, the EC engine enables you to work in an energy efficient manner. This engine also has a long service life.

SIDE-MOUNTED CHAIN TENSIONING

FOR SIMPLE AND SECURE RE-TENSIONING. Side-mounted chain tensioning allows for protected, easy and quick chain tensioning and replacement. The tensioning screw is inserted laterally through the sprocket cover.

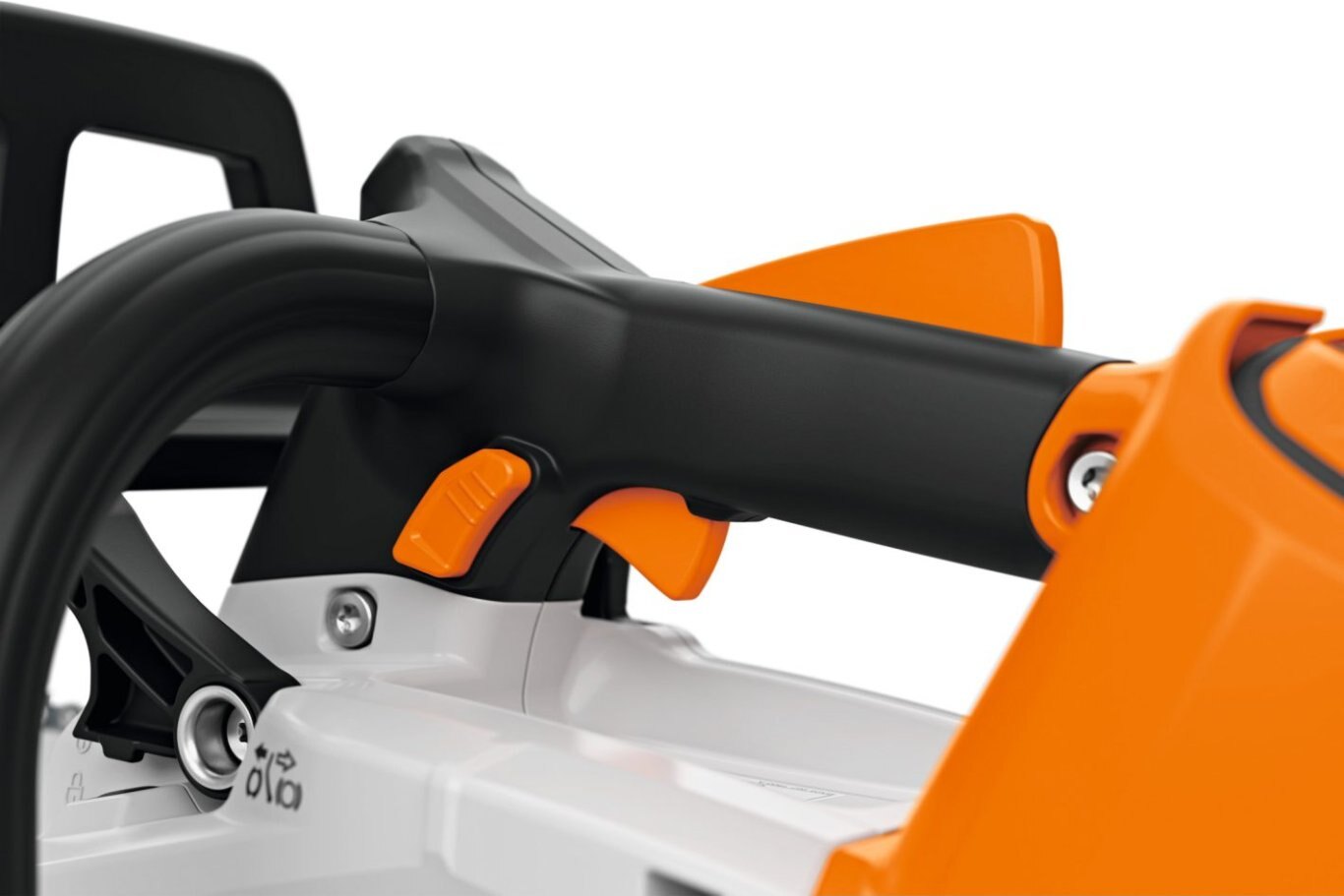

SOFT GRIP CONTROL HANDLE

FOR COMFORTABLE HANDLING. The control lever with potentiometer function allows you to control the speed of your battery-powered chainsaw on an infinitely variable basis, and in this way easily control and adjust its performance as needed. On consumer chainsaws, the potentiometer function is integrated into the throttle lever.

STIHL QUICK CHAIN TENSIONING

RE-TENSION THE SAW CHAIN TOOL-FREE. Thanks to STIHL Quick Chain Tensioning, you can tension your saw chain quickly and without tools, thanks to the adjusting wheel. Turning the adjusting wheel to the left releases tension on the saw chain, and turning the adjustment wheel to the right tensions the saw chain. The guide bar will be automatically secured when you tighten the sprocket cover.

FOLD-OUT HOOK

SECURE HANDLING. Thanks to the fold-out hook, you can attach the tool to a suspension rope, then pull it up into the treetop or lower it down from there. You can also use it to secure the power tool. When folded away, the hook does not interfere with work or storage.

TOOL-FREE OIL TANK

QUICK AND EASY TO USE. Thanks to the bayonet closure, you can open and close the tool-free fuel cap in just a few simple steps.

TRANSPARENT OIL TANK

QUICK AND EASY TO USE. Thanks to the bayonet closure, you can open and close the tool-free fuel cap in just a few simple steps.

POWER BOOST

MAXIMUM PERFORMANCE INCREASE. Thanks to intelligent electronics, STIHL power tools and batteries communicate with each other. If the device and battery are equipped with the POWER BOOST function, the battery always provides the maximum possible power for the respective application. In order to ensure optimum battery life, the device temporarily adjusts the power if it is used too intensively.

TRANSPARENT OIL TANK

MAKES FILL-LEVEL MONITORING EASY. With the transparent oil tank, you can easily and quickly check the fill level of the chain oil. This means that you always know when you need to add chain oil for efficient work over long periods.

IPX4 CERTIFIED

SPLASHWATER PROTECTION. The IPX protection classes define the moisture protection of electrical or electronic devices. The moisture protection test is defined in different stages. IPX4 certifies protection against splashwater from all sides. Battery-powered tools with this certification are therefore designed for daily use, even in rainy conditions.

CONSTANT POWER

CONSTANT POWER, REGARDLESS OF BATTERY CHARGE STATUS. With other brands of battery tools, the performance usually decreases during work as the battery discharges. This is not the case with STIHL cordless power tools with CONSTANT POWER. Thanks to the intelligent electronics, your STIHL power tool works with consistently high power.
