ID # 39365418

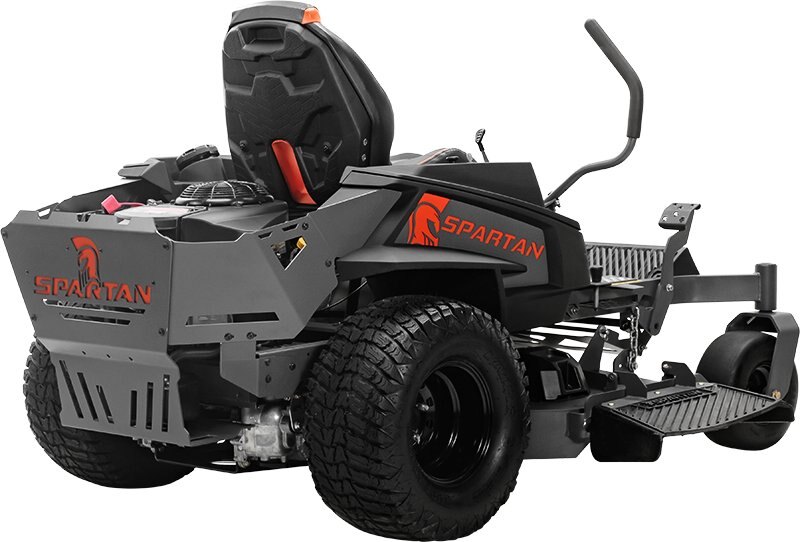

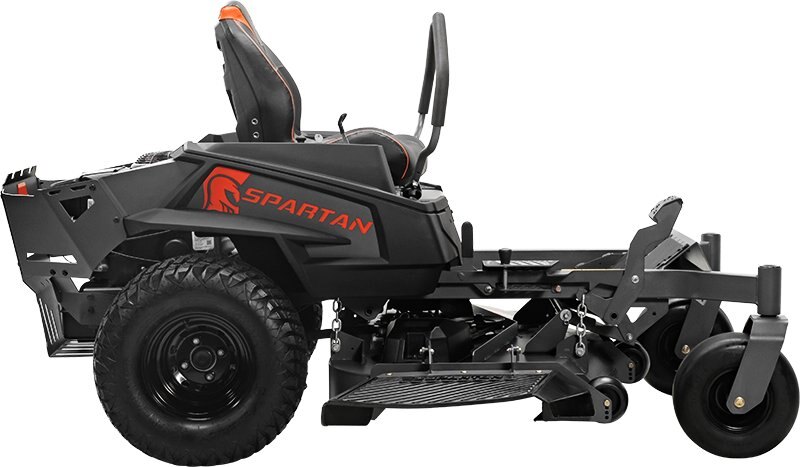

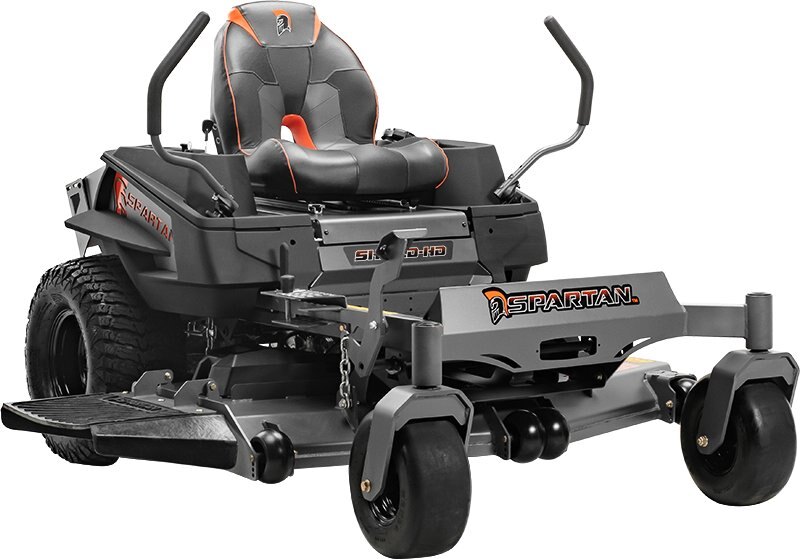

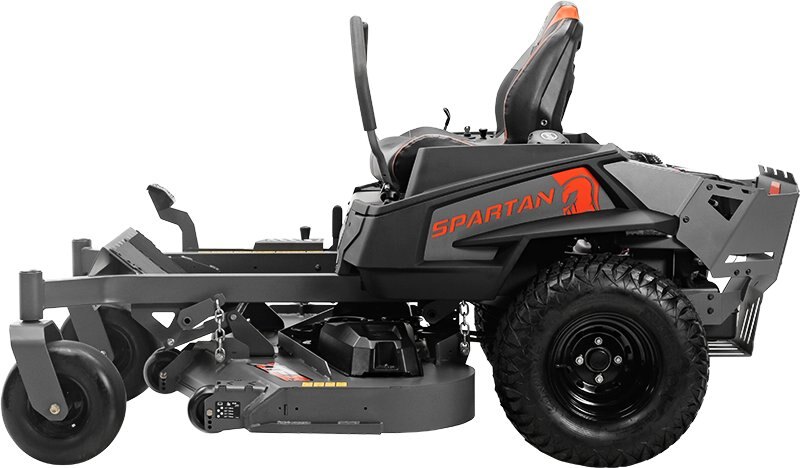

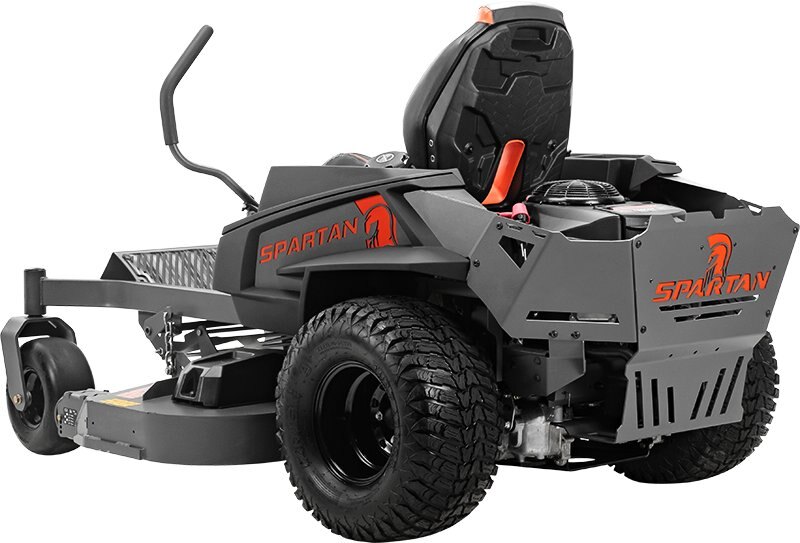

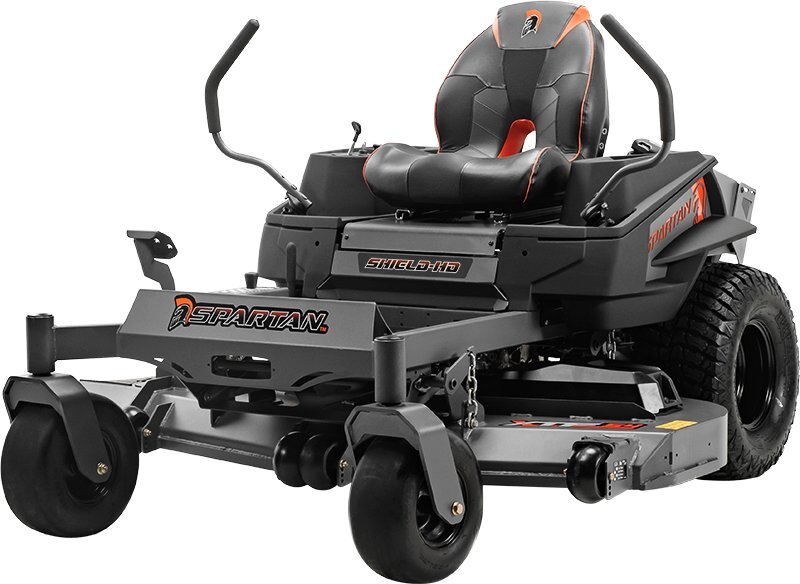

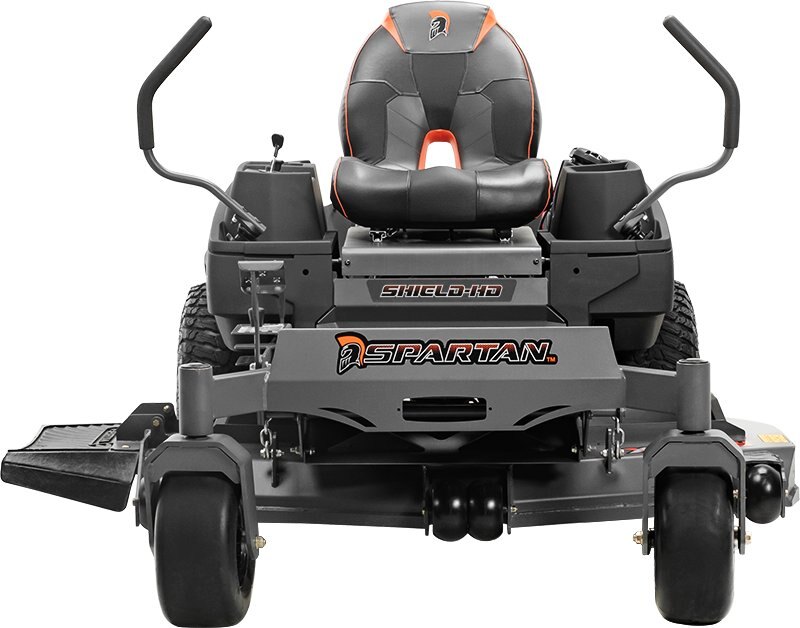

SPARTAN 42" SHIELD HD KAWASAKI FR691

Dealer Price $5,912 USD
Overview

The Shield-HD offers the greatest value for residential property owners by delivering the power and performance you expect

Specifications
Model
SZSD1K42691KR
Category Name
Lawnmowers
Year
2025
Sale Type
New
Manufacturer
SPARTAN MOWERS
advantages & features

High Quality Parts

Commercial-grade DNA is a key characteristic of Spartan Mowers, so our models feature the same heavy-duty components across the lineup.

Design & Style

Our passion for muscle cars from the late '60s has fueled the design of Spartan Mowers. Mow in style and turn heads with the stealthy profile of a Spartan.

LED Light Kits

Mounted directly to the front of the mower, an LED light bar is great for finishing up at dusk and lighting the way to your trailer or shed. Light bars are standard on Spartan's RZ-HD Blackout, RT-HD, SRT series, KG-XD, and KGZ-XD models. *Available upgrade on RZ-C, RZ, RZ-Pro, and RZ-HD.

Anti-Slip Mat

All models are equipped with a rubber anti-slip foot mat that helps reduce vibration from the transmission to the operator’s foot.

Adjustable Steering Arms

Adjustable steering arms add comfort for the best fit while mowing. *Standard on the RZ-HD Blackout and up. Available upgrade on the RZ-C, RZ, RZ-Pro, & RZ-HD.

All Features:

  • Magnetic Pin Height Adjustment
  • Key Switch Panel
  • Foot Operated Deck Lift
  • Automatic Parking Brake
  • Hydro-Gear ZT-2800 Transmission
  • 5 gal Fuel Capacity
  • 4" Deck Height
  • 3-year Warranty
  • Adjustable Steering Arms
engine
Horsepower
23 HP
Engine Name
42" Kawasaki FR691 23 HP
Fuel Capacity
5 Gallons
drive line
Wheel Type
Steel
Drive Tires
20x7-10 Carlisle Turf Armor
Front Tires
12" Bias Ply
Speed (F/R)
Forward - Up to 8mph | Reverse - Up to 5mph
Hydraulic Drive
Hydro-Gear ZT-2800
Hydraulic Drive Torque
Up to 300 ft-lb
Hydraulic Drive Maintenance
400 Hours Between Oil Change
features
Seat
Premium
Acreage
Up to 1
Storage
Cup Holder and Deep Storage Tray
Ignition
Key Switch
LED Light Bar
Full Beam
Steering Levers
Soft-Touch Knobs to Adjust Forward and Back. Adjustable Up and Down
Control Panel LCD Display
Hour Meter - Engine Hours
cutting deck
Frame
1.5" by 3" Powder Coated Frame
Deck Lift
Foot Operated
Deck Size
42"
Cut Height
1" to 5" with 15 Cut Heights
Deck Depth
4"
Parking Brake
Automatic in Control Arms
Blade Spindles
Cast Aluminum, No Maintenance/Sealed Bearings
Deck Adjustment
Magnetic Pin Height Adjustment
measurements
Width
42" Deck - 43.5" Wide
Height
44"
Length
81"
Weight
682-719 lbs
warranty
Deck Warranty
Lifetime on Leading Edge
Full Warranty
3 Year - 120 Day Belt Warranty
Engine Warranty
3 Year
Hydraulic Drive Warranty
3 Year / 200 Hour
literature
Name Link
2025 Spartan Mowers Warranty Statement Download
2025 Shield HD 42" // Model No. SZSD1K42691KR // Serial Number 400000000 & up Download
2025 Shield & Shield-HD Operators Manual Download
