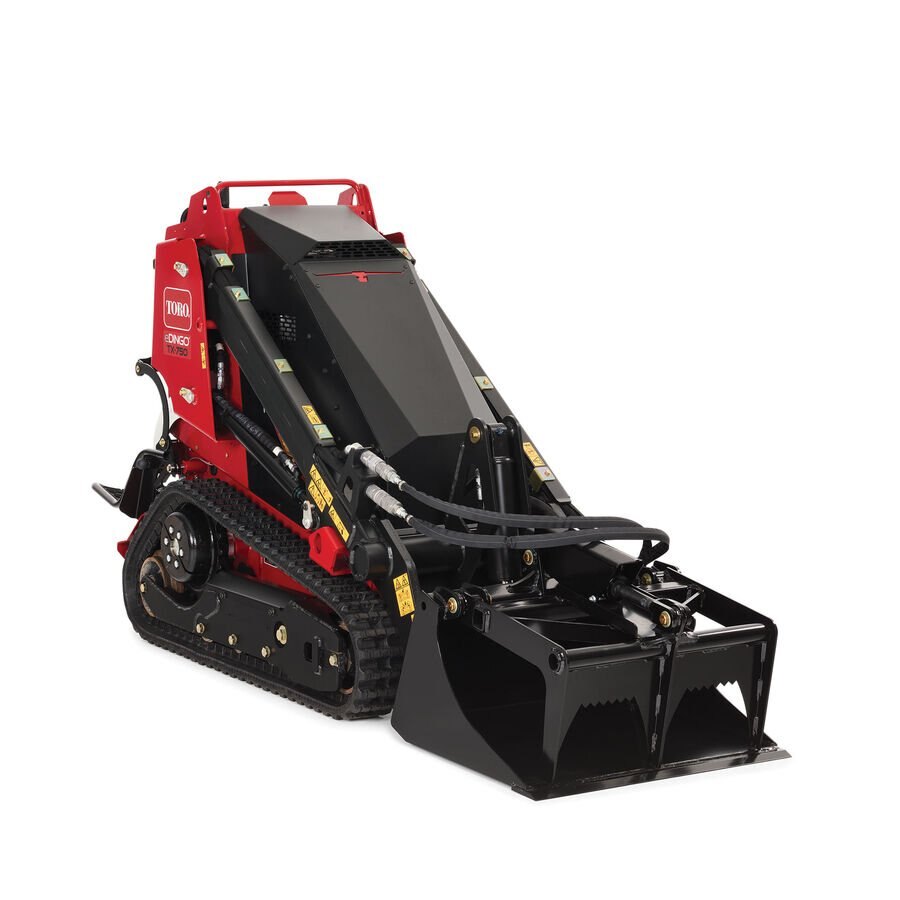

Toro eDingo® TX 750 Electric Track Loader, Narrow

Rated operating capacity of 750-lbs. Easily clear the side of 30-yard dumpsters or one-ton trucks Powered by HyperCell Power System® delivers up to 8 hours of continuous runtime. Meet the unique demands of interior construction and demolition with the productivity-boosting Toro® eDingo® TX 750. Toro’s patented HyperCell® Battery technology offers up to eight hours of qui...

Overview

  • Rated operating capacity of 750-lbs.
  • Easily clear the side of 30-yard dumpsters or one-ton trucks
  • Powered by HyperCell Power System® delivers up to 8 hours of continuous runtime.
Meet the unique demands of interior construction and demolition with the productivity-boosting Toro® eDingo® TX 750. Toro’s patented HyperCell® Battery technology offers up to eight hours of quiet runtime and zero engine exhaust emissions. Intuitive controls and compact design allow operators to easily maneuver in tight spaces while saving time, reducing fatigue and boosting productivity.

Specifications

Model
22230
Category Name
Lawn / Garden
Year
2026
Sale Type
New
Manufacturer
Toro
Quantity
0
Manufacturer Qty
0
Width
31.5 in. / 80.65 cm
Height
54.5 in. / 138.4 cm
Length
66 in. / 167.6 cm
Tracks
MERT Track With “B” Style Tread
Weight
2,561 lbs / 1,161.6 kg
Battery
Toro HyperCell Lithium Ion
UPC/EAN
21038222301
Fuel Type
Electric
Dump Angle
40 deg
Loader Arms
Radial
Track Width
5.4 in. / 13.7 cm
Tip Capacity
2,142 lbs / 971.5 kg
Track Length
126.6 in. / 321.5 cm
Battery Capacity
22.3 kWh
Ground Clearance
5.8 in. / 14.7 cm
Max Operating Height
106.6 in. / 270.7 cm
Ground Speed - Forward
Up to 4.0 mph / 6.4 kph
Ground Speed - Reverse
Up to 2.0 mph / 3.2 kph
Battery Charging Requirements
240V

features

Toro eDingo® TX 750 Electric Track Loader, Narrow
Rated Operating Capacity (ROC)

This compact powerhouse can lift up to 750 lbs


Toro eDingo® TX 750 Electric Track Loader, Narrow
81-inch hinge pin height

Easily clear the side of 30-yard dumpsters or one-ton trucks

Powered by HyperCell

Toro’s proprietary battery technology offers reduced noise, zero engine exhaustemissions and all-day runtime*.*Run time may vary depending on attachment being used

literature

Name Link
Operator's Manual Download

Documents

  • 278238.pdf

    278238.pdf
