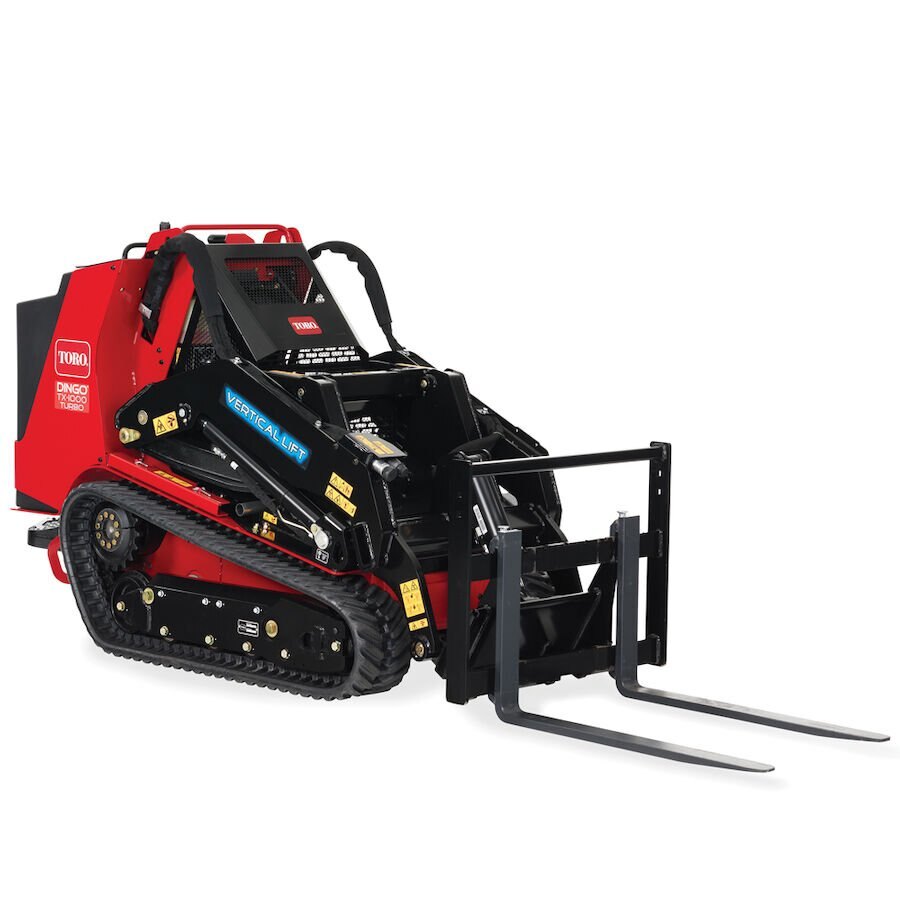

Toro Dingo® TX 1000 TURBO Track Loader, Wide

Smart Power allows the machine to run more efficient by automatically adjusting traction speed to maximize engine, auxiliary, and traction torque. Compact footprint fits through standard 36" gates Maximum height and reach easily clears the side of a 30-yard dumpster Patented traction control The Dingo TX 1000 TURBO is a turbocharged marvel that not only enhances the unmatched succes...

Overview

  • Smart Power allows the machine to run more efficient by automatically adjusting traction speed to maximize engine, auxiliary, and traction torque.
  • Compact footprint fits through standard 36" gates
  • Maximum height and reach easily clears the side of a 30-yard dumpster
  • Patented traction control
The Dingo TX 1000 TURBO is a turbocharged marvel that not only enhances the unmatched success and superior performance of its predecessor but also incorporates the innovative Smart Power® feature. This feature optimizes engine, auxiliary, and traction torque, providing users with an unparalleled compact utility loader experience. With a width of under 35 inches, the Dingo TX 1000 TURBO narrow track effortlessly navigates through standard 36-inch gates, ensuring versatility and accessibility across a range of job sites.

Specifications

Model
22588
Category Name
Lawn / Garden
Year
2026
Sale Type
New
Manufacturer
Toro
Quantity
0
Manufacturer Qty
0
Width
39.9 in. / 101.3 cm
Height
54.5 in. / 138.4 cm
Length
83 in. / 210.8 cm
Tracks
MERT Track With Turf Friendly Style Tread
Weight
2,911 lbs / 1,320 kg
UPC/EAN
21038225883
Fuel Tank
10.25 gal. / 38.8 L
Fuel Type
Diesel
Wheelbase
39 in. / 99.0 cm
Dump Angle
40 deg
Engine Make
Yanmar
Track Width
9.1 in. / 23.1 cm
Engine Model
3TNV80FT Turbo Diesel Tier 4 & EU Stage 5 compliant
Oil Capacity
3.8 qt / 3.6 L
Cooling System
Combo Crossflow Radiator and Oil Cooler
Ground Clearance
5.9 in. / 14.9 cm
Engine Horsepower
24.7 hp (18.4 kW)
Hydraulic Pressure
3,000 PSI
Width - With Bucket
42.2 in. / 107.2 cm
Length - With Bucket
104 in. / 264.2 cm
Max Operating Height
106.2 in. / 269.7 cm
Ground Speed - Forward
Up to 4.1 mph / 6.5 kph
Ground Speed - Reverse
Up to 4.1 mph / 6.5 kph

features

Toro Dingo® TX 1000 TURBO Track Loader, Wide
Smart Power®

Smart Power allows the machine to run more efficient by automatically adjusting traction speed to maximize engine, auxiliary, and traction torque.
Toro Dingo® TX 1000 TURBO Track Loader, Wide
Traction Control System

Toro's patented traction control system allows intuitive user operation for all skill levels now includes the integration of a digital display.

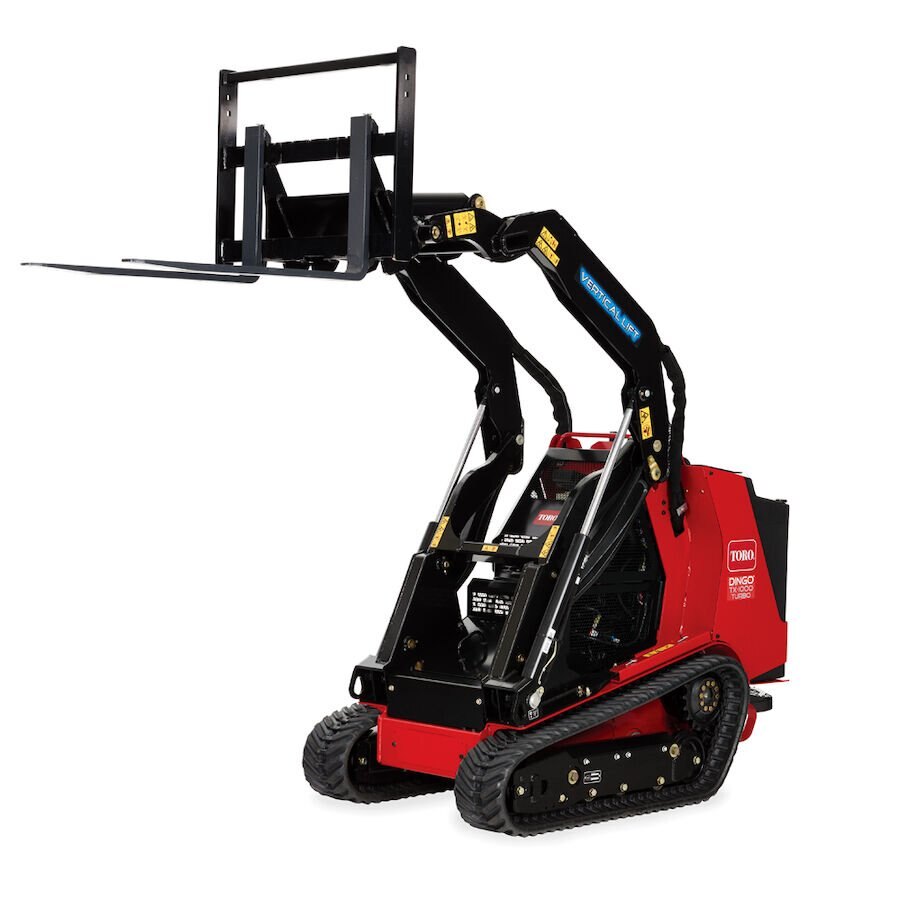

Toro Dingo® TX 1000 TURBO Track Loader, WideMaximum Height & Reach

The 81” (206 cm) hinge pin height allows attachments to easily clear the side of 30-yard dumpsters or one-ton trucks.
Toro Dingo® TX 1000 TURBO Track Loader, WideEasy Operation

The auxiliary foot pedal maintains hydraulic flow to the attachment, freeing the operator's hands to focus on ground speed an attachment positioning.

literature

Name Link
Operator's Manual Download

Documents

  • 251877.pdf

    251877.pdf
