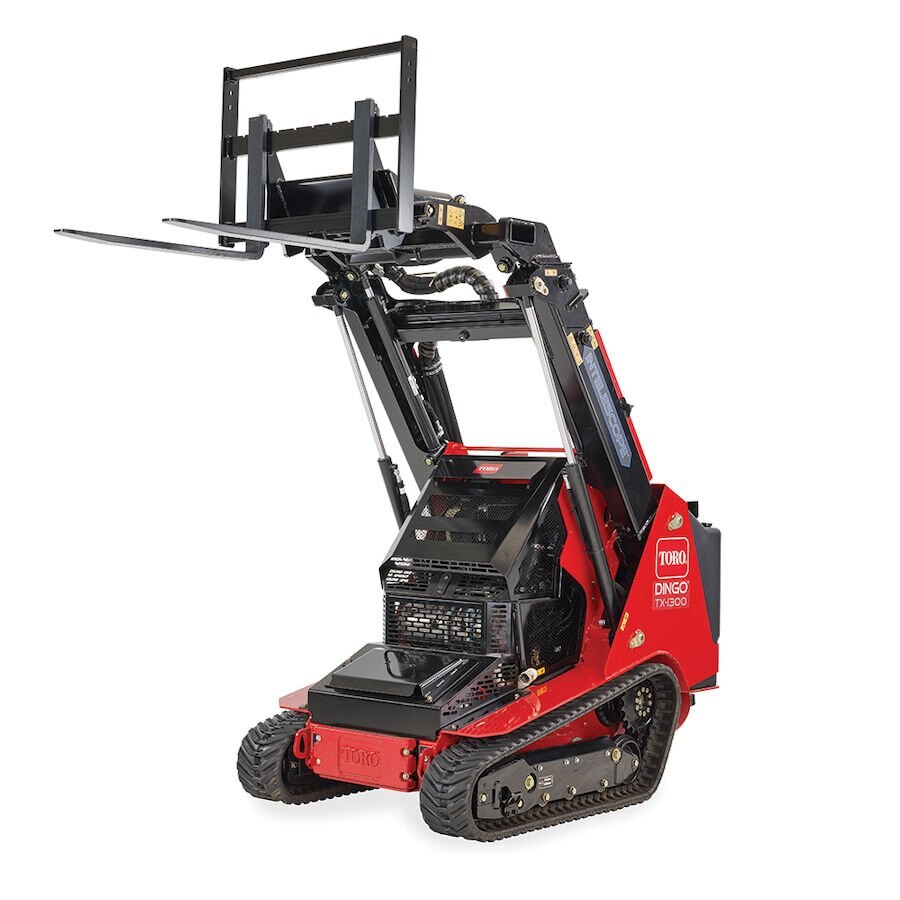

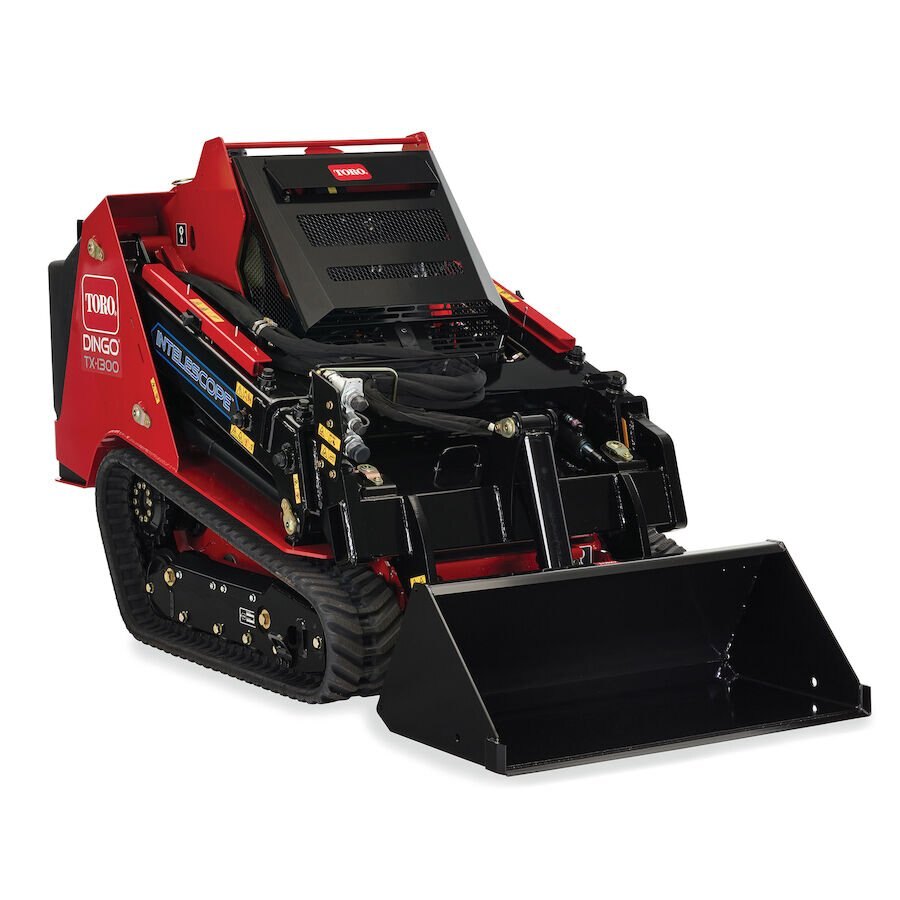

Toro Dingo® TX 1300 Track Loader

Intelescope Loader Arm Quick Coupler System Patented traction control Ideal for landscape, hardscape and tree care jobs, the TX 1300 brings a new combination of power, reach and convenient control to the Toro® Dingo® lineup. With a 37 hp Yanmar® Tier IV diesel engine and 1,300 lbs of rated operating capacity, it’s the user-friendly workhorse you need to save time. The exclus...

Overview

  • Intelescope Loader Arm
  • Quick Coupler System
  • Patented traction control
Ideal for landscape, hardscape and tree care jobs, the TX 1300 brings a new combination of power, reach and convenient control to the Toro® Dingo® lineup. With a 37 hp Yanmar® Tier IV diesel engine and 1,300 lbs of rated operating capacity, it’s the user-friendly workhorse you need to save time. The exclusive INTELESCOPE® loader arm with SmartLoad adds 26" of reach, and the telescoped hinge-pin height of 109" means you can lift loads up and over the side of a dumpster or truck for maximum productivity. Plus, you can operate the Toro patented traction controls with one hand and thumb-controlled telescoping extension and auxiliary functions (in the loader arm control) with the other to pick, place and dump materials with ease all day long.

Specifications

Model
22370
Category Name
Lawn / Garden
Year
2026
Sale Type
New
Manufacturer
Toro
Quantity
0
Manufacturer Qty
0
Width
46 in. / 116.8 cm
Height
56.5 in. / 143.5 cm
Length
84.9 in. / 215.6 cm
Tracks
MERT Track With "TF" Style Tread
Weight
3,858 lbs / 1,750 kg
UPC/EAN
21038223704
Fuel Tank
11 gal. / 41.6 L
Fuel Type
Diesel
Wheelbase
39 in. / 99.0 cm
Dump Angle
38 deg
Engine Make
Yanmar
Loader Arms
Radial
Track Width
9.1 in. / 23.1 cm
Engine Model
3TNV88C
Oil Capacity
5 qt / 4.7 L
Cooling System
Combo Downflow Radiator and Oil Cooler, Independent Fuel
Ground Clearance
5.9 in. / 14.9 cm
Engine Horsepower
37 hp (27 kW)
Hydraulic Pressure
3,200 PSI
Width - With Bucket
46 in. / 116.8 cm
Length - With Bucket
103.1 in. / 261.8 cm
Max Operating Height
133 in. / 337.8 cm
Ground Speed - Forward
Up to 4.7 mph / 7.6 km/h
Ground Speed - Reverse
Up to 4.7 mph / 7.6 km/h

features

Toro Dingo® TX 1300 Track Loader
Extra Reach

The Intelescope® loader arm with SmartLoad gives 26" of additional reach. The telescoped hinge-pin height of 109" allows loads to be lifted over the sides of dumpsters or trucks to maximize productivity.
Toro Dingo® TX 1300 Track Loader
Outstanding ROC

The durable loader arm with improved q-tach casting, allows for a more durable loader arm design and up to 1,300 lbs of operating capacity.
Toro Dingo® TX 1300 Track LoaderQuick Coupler System

The pressure relieving quick coupler system makes connecting and disconnecting attachments easier.

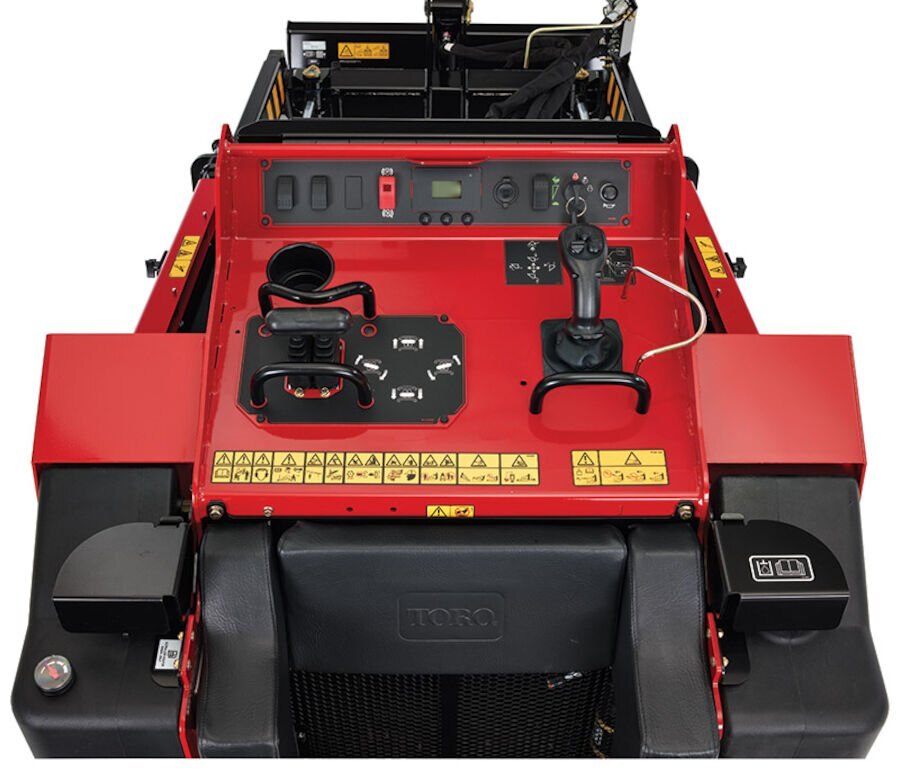

Toro Dingo® TX 1300 Track LoaderAuxiliary Pedal

User friendly auxiliary pedal on an enlarged operator platform improves ease of engagement.
Toro Dingo® TX 1300 Track LoaderEase of Use

Toro patented traction control and integrated hydraulic operation in loader arm control.

literature

Name Link
Brochure Download
Operator's Manual Download

Documents

  • 254206.pdf

    254206.pdf
