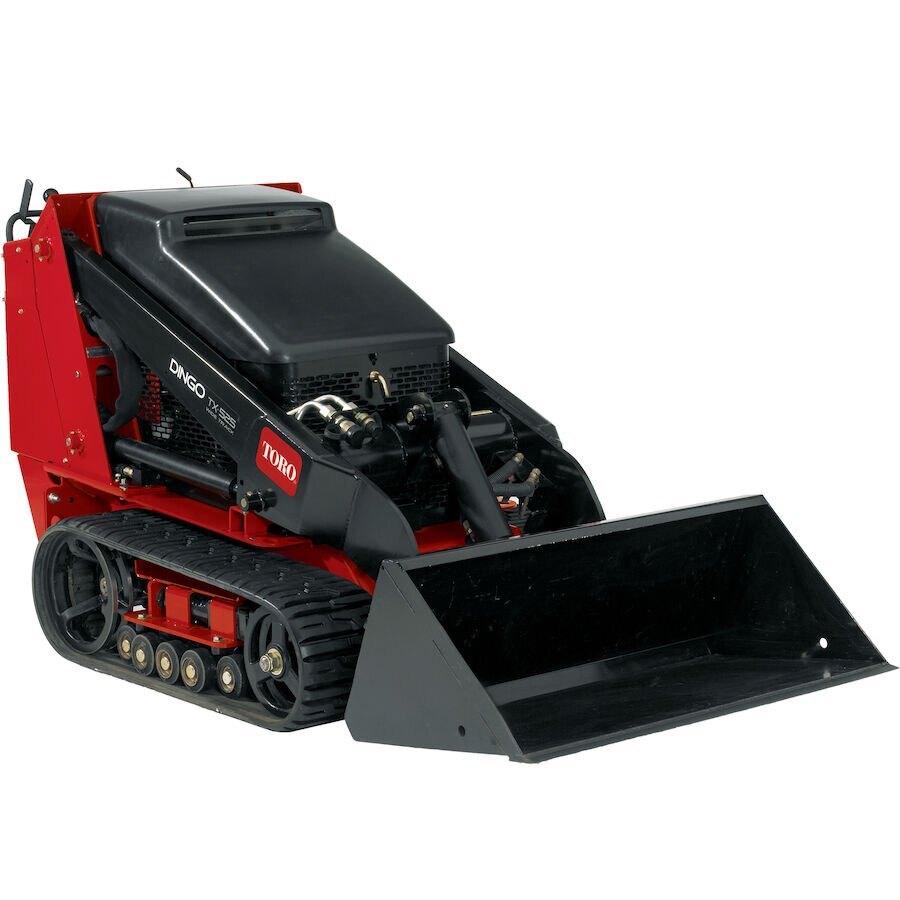

Toro Dingo® TX 525 Track Loader, Wide

Patented TX control system Liquid-Cooled Kubota diesel engine Our diesel Dingo® TX models deliver what customers want: extra torque, longer engine life, and increased hydraulic flow for enhanced performance of ground-engaging attachments. The TX 525 offers amazing hydraulic power, delivering 13.8 gpm and pumping 24 hp to the attachment, yet has a ground pressure as low as 3.5 psi. And because ...

Overview

  • Patented TX control system
  • Liquid-Cooled Kubota diesel engine
Our diesel Dingo® TX models deliver what customers want: extra torque, longer engine life, and increased hydraulic flow for enhanced performance of ground-engaging attachments. The TX 525 offers amazing hydraulic power, delivering 13.8 gpm and pumping 24 hp to the attachment, yet has a ground pressure as low as 3.5 psi. And because they're part of the full-line family, these diesels are compatible with all of Toro's compact utility loader attachments.

Specifications

Model
22324
Category Name
Lawn / Garden
Year
2026
Sale Type
New
Manufacturer
Toro
Quantity
0
Manufacturer Qty
0
Width
41 in. / 104.1 cm
Height
46.1 in. / 117.0 cm
Length
70.7 in. / 179.5 cm
Tracks
Sprocket-drive, 10 Road Wheels Per Side
Weight
2,013 lbs/ 913 kg
UPC/EAN
21038223247
Fuel Tank
6 gal. / 22.7 L
Fuel Type
Diesel
Wheelbase
31.2 in. / 79.2 cm
Dump Angle
38 deg
Engine Make
Kubota
Loader Arms
Radial
Track Width
9.5 in. / 24.1 cm
Engine Model
D902E3B
Oil Capacity
3.8 qt / 3.6 L
Cooling System
Liquid Cooled
Ground Clearance
6.3 in. / 16.0 cm
Engine Horsepower
24.8 hp (18.5 kW) @ 3,200 rpm
Hydraulic Pressure
3,000 PSI
Width - With Bucket
41 in. / 104.1 cm
Length - With Bucket
92 in. / 233.6 cm
Max Operating Height
90.1 in. / 228.8 cm
Ground Speed - Forward
Up to 4.5 mph / 7.2 km/h
Ground Speed - Reverse
Up to 2.0 mph / 3.2 km/h

features

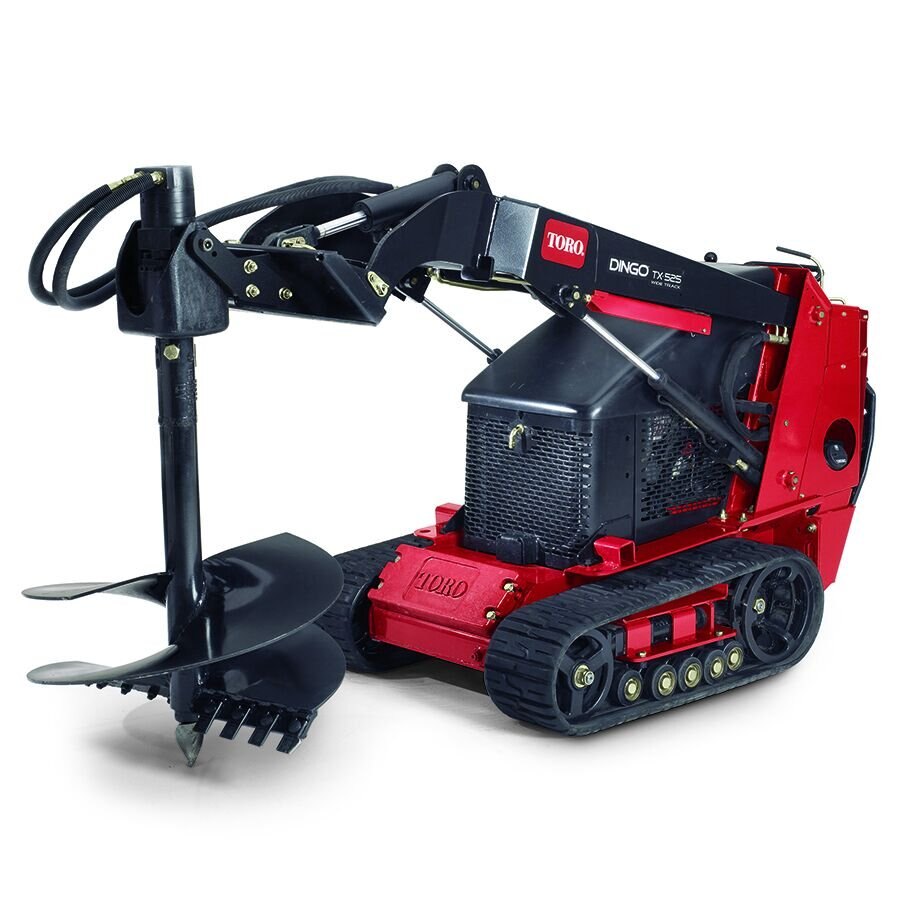

Toro Dingo® TX 525 Track Loader, Wide
Simple Controls

You're up and running in a flash with three easy-to-use controls. 1) The joystick loader control lets you curl, dump or float the bucket while simultaneously raising or lowering the loader arms - all with one hand. 2) With your other hand, you can grab the one-hand traction drive from any angle, for effortless control. 3) The third control, the auxiliary circuit control lever, which can be activated while operating the traction drive, powers the attachments instantly.
Toro Dingo® TX 525 Track Loader, Wide
4-Pump Hydraulic System

4-pump hydraulic system lets you simultaneously operate the loader, bucket, traction, and auxiliary drives for increased operator efficiency. This system directs hydraulic power precisely where you need it!
Toro Dingo® TX 525 Track Loader, WideExclusive TX Track Drive

Low center of gravity and large footprint increase stability on side hills and provide smooth operation over rugged terrain; eliminates tire ruts and flat tires.
Toro Dingo® TX 525 Track Loader, WideLiquid-Cooled Diesel

The 23.3 hp (17.3 kw) Kubota diesel engines torque curve combined with the added auxiliary hp provide attachments the added power tough jobs require.

literature

Name Link
Operator's Manual Download
Brochure Download
