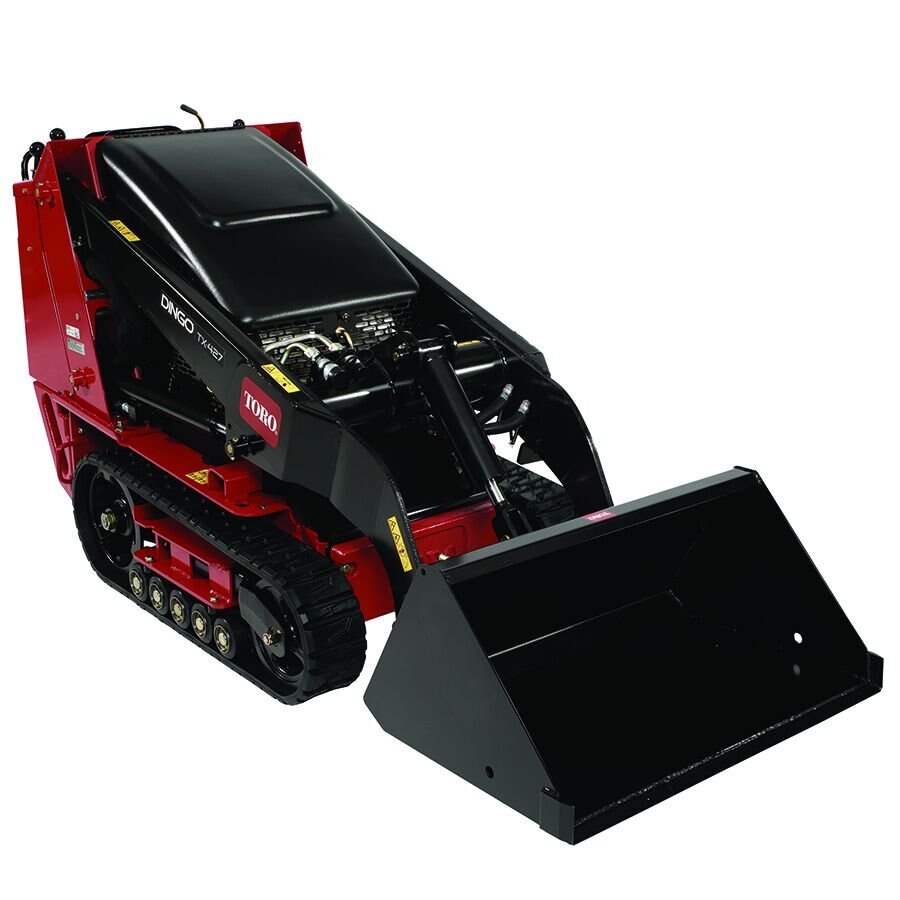

Toro Dingo® TX 427 Track Loader, Narrow

Patented TX control system Reinforced tracks disperse weight evenly Compact footprint fits through standard 36" gates Toro Dingo® compact utility loaders possess the versatility to handle countless jobs on every site: dig, haul, plant and build. The TX 427 Narrow track design provides a low 5.1 psi ground pressure which is easy on turf. Designed with workers in mind, all of its power...

Overview

  • Patented TX control system
  • Reinforced tracks disperse weight evenly
  • Compact footprint fits through standard 36" gates
Toro Dingo® compact utility loaders possess the versatility to handle countless jobs on every site: dig, haul, plant and build. The TX 427 Narrow track design provides a low 5.1 psi ground pressure which is easy on turf. Designed with workers in mind, all of its power is harnessed in only 3 easy to use controls, which make it simple for any worker to step up and be productive immediately!

Specifications

Model
22321
Category Name
Lawn / Garden
Year
2026
Sale Type
New
Manufacturer
Toro
Quantity
0
Manufacturer Qty
0
Width
33.7 in. / 85.5 cm
Height
46.1 in. / 117.0 cm
Length
70.7 in. / 179.5 cm
Tracks
Sprocket-drive, 10 Road Wheels Per Side
Weight
1,904 lbs / 863.6 kg
UPC/EAN
21038223216
Fuel Tank
6 gal. / 22.7 L
Fuel Type
Diesel
Wheelbase
31.2 in. / 79.2 cm
Dump Angle
38 deg
Engine Make
Kohler
Loader Arms
Radial
Track Width
5.9 in. / 14.9 cm
Engine Model
Command Pro Series CH740
Oil Capacity
2 qt / 1.9 L
Cooling System
Air Cooled
Ground Clearance
4.6 in. / 11.56 cm
Engine Horsepower
25 hp (18.6 kW) @ 3,600 rpm
Hydraulic Pressure
3,000 PSI
Width - With Bucket
33.7 in. / 85.5 cm
Length - With Bucket
92 in. / 233.6 cm
Max Operating Height
90.1 in. / 228.8 cm
Ground Speed - Forward
Up to 4.5 mph / 7.2 km/h
Ground Speed - Reverse
Up to 2.0 mph / 3.2 km/h

features

Toro Dingo® TX 427 Track Loader, Narrow
Simple Controls

You're up and running in a flash with three easy-to-use controls. 1) The joystick loader control lets you curl, dump or float the bucket while simultaneously raising or lowering the loader arms - all with one hand. 2) With your other hand, you can grab the one-hand traction drive from any angle, for effortless control. 3) The third control, the auxiliary circuit control lever, which can be activated while operating the traction drive, powers the attachments instantly.
Toro Dingo® TX 427 Track Loader, Narrow
4-Pump Hydraulic System

4-pump hydraulic system lets you simultaneously operate the loader, bucket, traction, and auxiliary drives for increased operator efficiency. This system directs hydraulic power precisely where you need it!
Toro Dingo® TX 427 Track Loader, NarrowExclusive TX Track Drive

Low center of gravity and large footprint increase stability on side hills and provide smooth operation over rugged terrain; eliminates tire ruts and flat tires.
Toro Dingo® TX 427 Track Loader, NarrowCompact Size

Narrow enough so you can bring hydraulic power to tight areas; through doorways and gates previously accessible only by manual labor. Plus it provides zero radius turn capability for unmatched maneuverability.
Toro Dingo® TX 427 Track Loader, NarrowLow Impact Footprint

Long-lasting, aramid reinforced tracks disperse weight evenly for a light footprint on tur, while delivering better traction in sandy or wet ground conditions.
Toro Dingo® TX 427 Track Loader, NarrowAir-Cooled Gasoline Engine

A 27 hp (20 kw) Kohler® engine provides the necessary power to drive any one of the multitude of Toro attachments available for the Dingo TX.

literature

Name Link
Operator's Manual Download
Brochure Download

Documents

  • 182620.pdf

    182620.pdf
