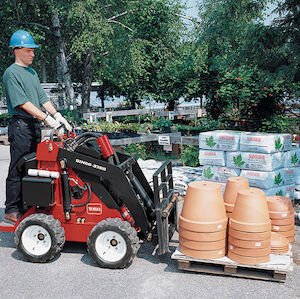

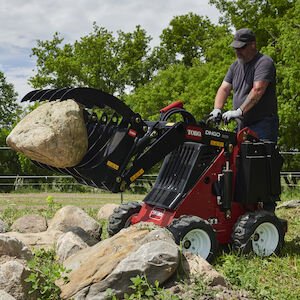

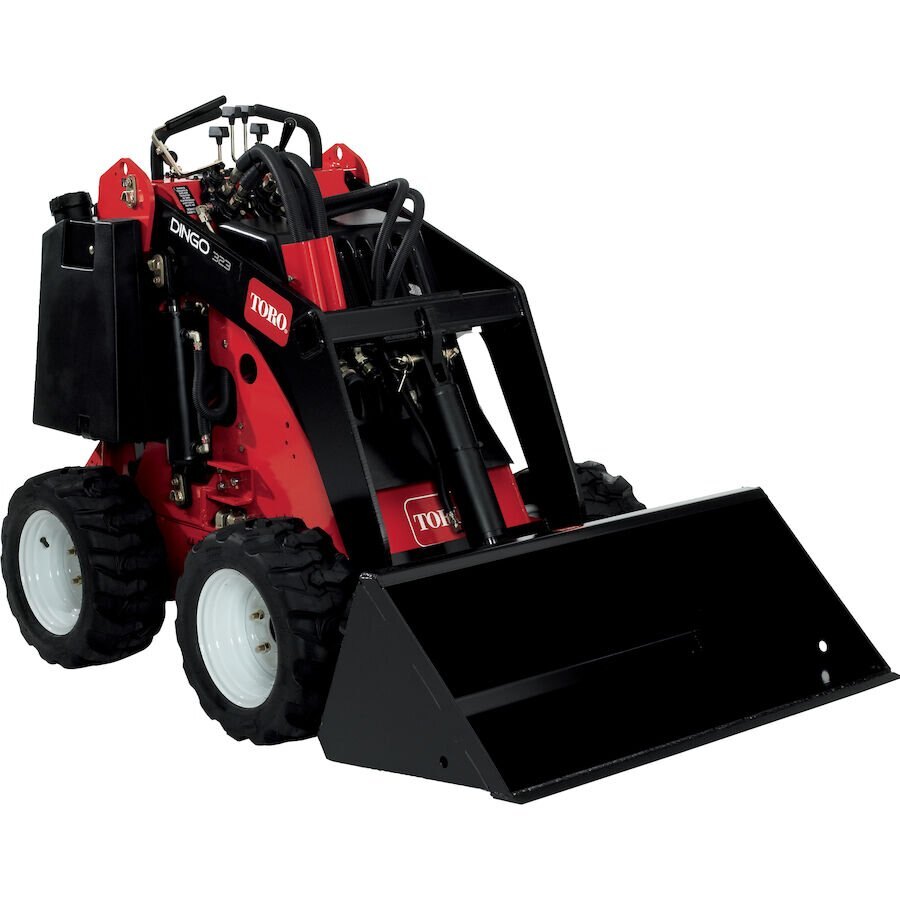

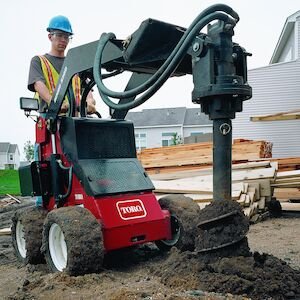

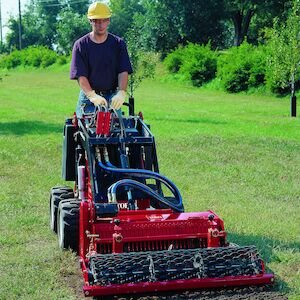

Toro Dingo® 323 Mini Skid Steer

Patented 4-Paw Independent Four-Wheel Drive 2-Pump Hydraulic System Easy-to-reach 4-stick fingertip hand controls Equipped with the Toro designed 4-Paw®, independent 4-wheel drive system, the Dingo® 323 at 3000 psi (206.7 bar) offers incredible power and durability. Delivering 10.8 gpm (40.9 lpm) of hydraulic power with this 23 hp (17.2 kw) Kohler engine will guarantee jobsite product...

Overview

  • Patented 4-Paw Independent Four-Wheel Drive
  • 2-Pump Hydraulic System
  • Easy-to-reach 4-stick fingertip hand controls
Equipped with the Toro designed 4-Paw®, independent 4-wheel drive system, the Dingo® 323 at 3000 psi (206.7 bar) offers incredible power and durability. Delivering 10.8 gpm (40.9 lpm) of hydraulic power with this 23 hp (17.2 kw) Kohler engine will guarantee jobsite productivity.

Specifications

Model
22318
Category Name
Lawn / Garden
Year
2026
Sale Type
New
Manufacturer
Toro
Quantity
0
Manufacturer Qty
0
Height
48.7 in. / 123.7 cm
Length
62 in. / 157.5 cm
Weight
1,567 lbs / 711 kg
UPC/EAN
21038223216
Fuel Tank
11.2 gal. / 42.4 L
Fuel Type
Gasoline
Wheelbase
28 in. / 71.1 cm
Dump Angle
34 deg
Engine Make
Kohler
Loader Arms
Radial
Track Width
5.9 in. / 14.9 cm
Engine Model
Command Series CH23
Oil Capacity
2 qt / 1.9 L
Track Length
96.6 in. / 245.3 cm
Cooling System
Air Cooled
Ground Clearance
5.8 in. / 14.7 cm
Engine Horsepower
22.5 hp
Hydraulic Pressure
3,250 PSI
Length - With Bucket
82.2 in. / 208.8 cm
Max Operating Height
91.2 in. / 231.6 cm
Ground Speed - Forward
Up to 3.7 mph / 6.1 km/h
Ground Speed - Reverse
Up to 3.7 mph / 6.1 km/h
Width - With Narrow Tires
35 in. / 88.9 cm
Width - With Standard Tires
40.5 in. / 102.8 cm

features

Toro Dingo® 323 Mini Skid Steer
4-Paw® Independent 4-Wheel Drive

Directs hydraulic flow and pressure to all the wheels, at all times. You can power through the toughest conditions and reduce the likelihood of getting stuck. The 4-Paw eliminates the use of chains - reducing maintenance and eliminating the chance of a broken chain.
Toro Dingo® 323 Mini Skid Steer
2-Pump Hydraulic System

Independent power can be supplied to the attachment or the wheels. The 2-pump system offers a high flow of 10.8 gpm (37.9 lpm) and a low flow of 4 gpm (15.1 lpm). This provides better usage of power to get the job done as well as not relying on one pump for shared power.
Toro Dingo® 323 Mini Skid SteerHighly Maneuverable

Short wheelbase design offers excellent maneuverability. Get into tight spaces where only hand labor could go before.
Toro Dingo® 323 Mini Skid SteerFingertip Controls

Easy-to-reach 4-stick fingertip hand controls enable all functions from the operator position. The operator controls all movements of the machine and attachments with his fingertips.

literature

Name Link
Operator's Manual Download
Brochure Download

Documents

  • 256649.pdf

    256649.pdf
