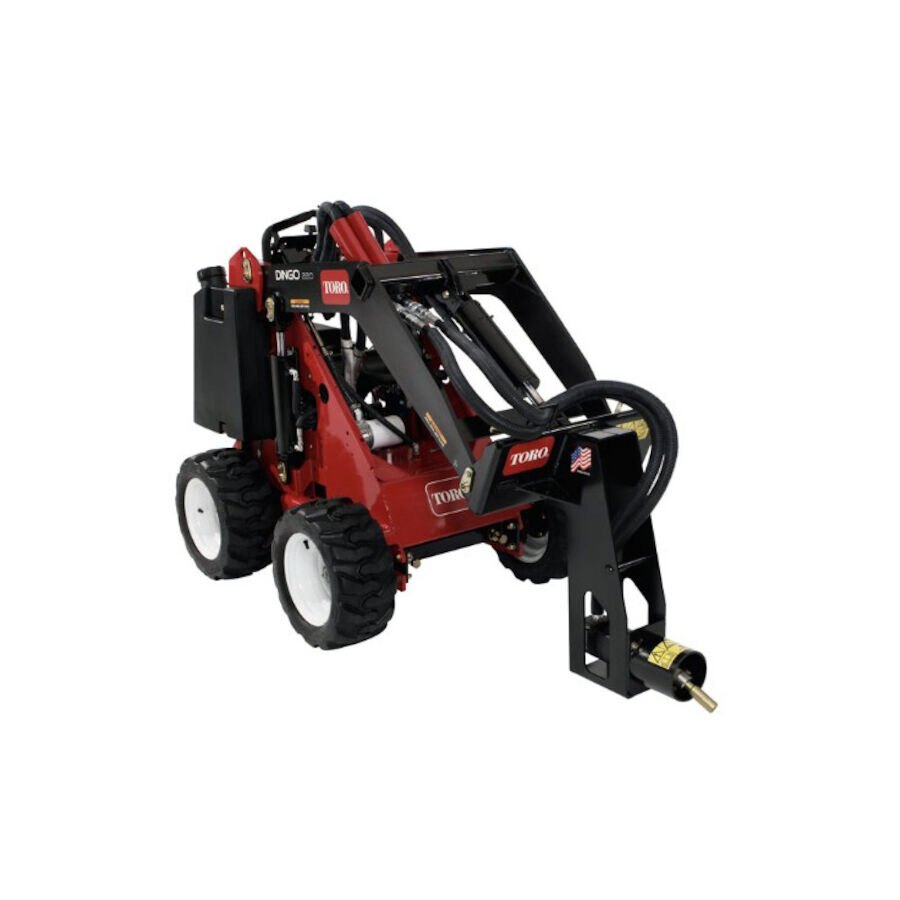

Toro Bore Drive Head Attachment

19" working depth Universal joint keeps rods horizontal Accommodates pipe up to 3" diameter Rod and reamer kit sold separately The Toro® Dingo® boring unit allows you to dig under sidewalks and driveways to simplify irrigation and cable installations. Shorter rod lengths and the ability to lower the bore head below grade allow you to work in both confined and open areas...

Overview

  • 19" working depth
  • Universal joint keeps rods horizontal
  • Accommodates pipe up to 3" diameter

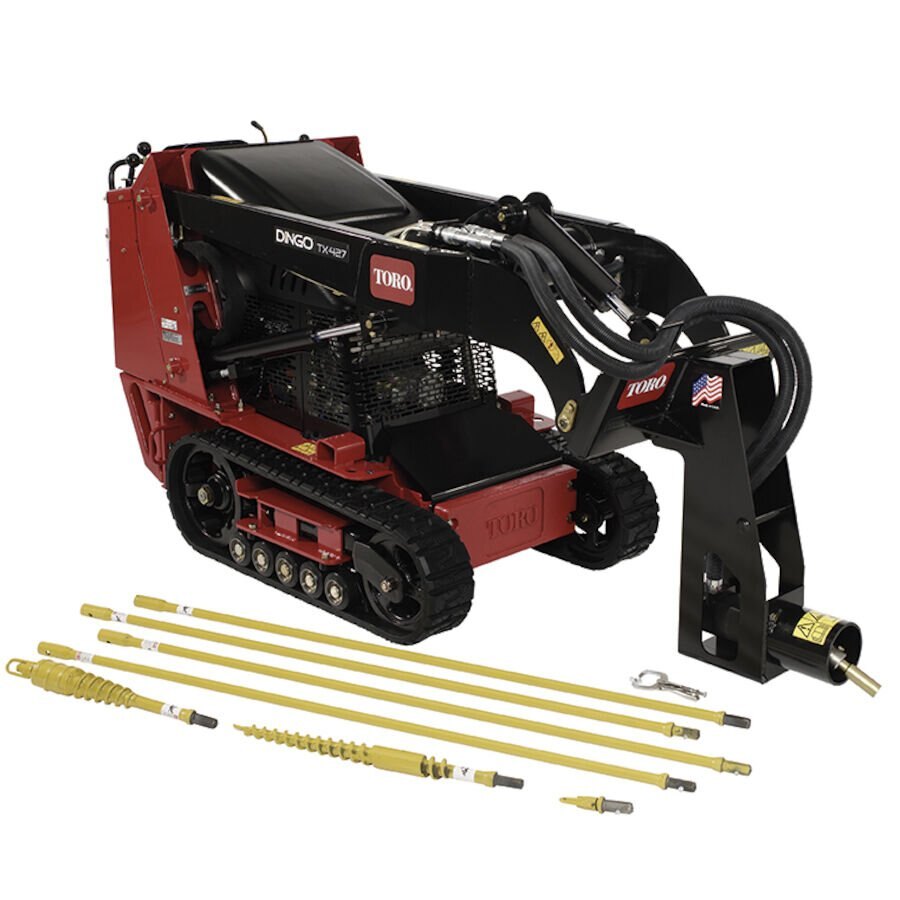

  • Rod and reamer kit sold separately
The Toro® Dingo® boring unit allows you to dig under sidewalks and driveways to simplify irrigation and cable installations. Shorter rod lengths and the ability to lower the bore head below grade allow you to work in both confined and open areas, increasing your productivity.

Specifications

Model
22420
Category Name
Lawn / Garden
Year
2026
Sale Type
New
Manufacturer
Toro
Quantity
0
Manufacturer Qty
0
Width
24 in. / 60.9 cm
Height
25 in. / 63.5 cm
Length
22 in. / 55.8 cm
Models
Dingo 320-D, Dingo 323, Dingo TX 1000, Dingo TX 1000 TURBO, Dingo TX 1300, Dingo TX 427, Dingo TX 525, Dingo TX 700
Torque
430 ft/lbs at 2000 psi (59 KgVm at 138 bar)
Weight
120 lbs / 54.4 kg
UPC/EAN
21038224206
Construction
Fabricated, Welded Steel Frame
Working Width
6 in. / 15.2 cm
Mounting Frame
Dingo® Quick-Attach Mount Plate, Fabricated, Welded Base
Quick Couplers
Dripless, Flush Face Quick Couplers
Rated Pressure
3,000 PSI (207 BAR)

features

Bore Depth

Bore up to 19" below ground surface.

Universal Joint

Increases productivity by allowing you to keep rods in a horizontal digging position in the toughest soil conditions.



literature

Name Link
Operator's Manual Download

Documents

  • 221781.pdf

    221781.pdf

  • 221781.pdf

    221781.pdf
