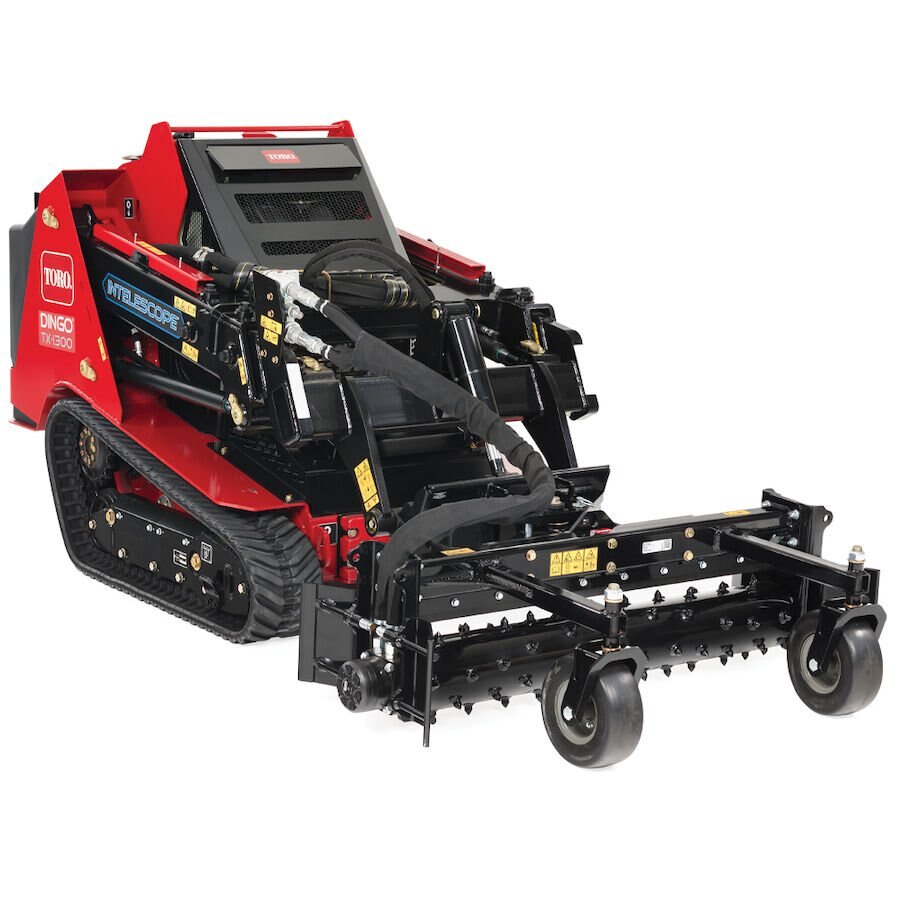

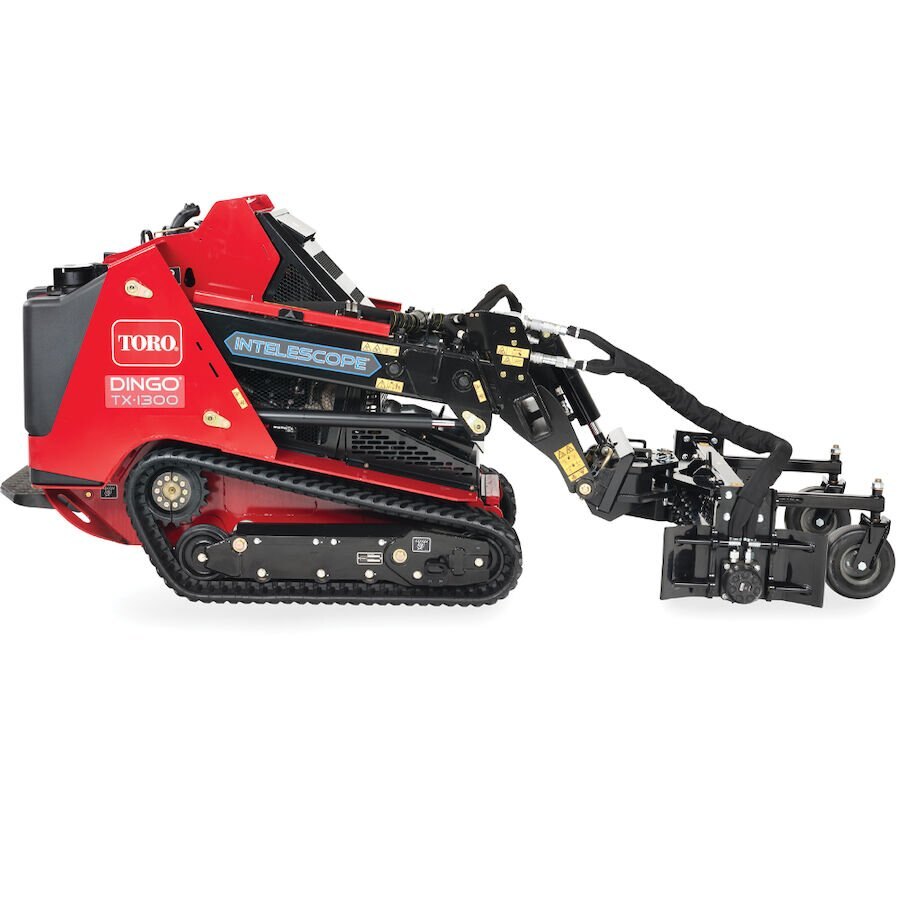

Toro Power Box Rake Attachment

Adjustable Yoke Adjustable Wheels The Toro Power Box Rake is the perfect tool for seed bed and sod bed preparation. The rotary drum on the power box rake pulverizes rough soil, cuts high spots and fills low spots in one pass; while removing rocks and debris. Pure carbide teeth design produces the best possible seeded sub-soil, which promote superior moisture retention and rapid seed growth. ...

Overview

  • Adjustable Yoke
  • Adjustable Wheels

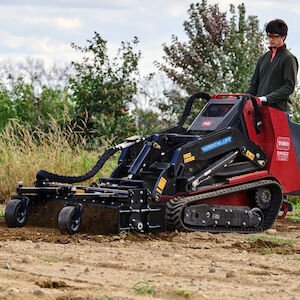

The Toro Power Box Rake is the perfect tool for seed bed and sod bed preparation. The rotary drum on the power box rake pulverizes rough soil, cuts high spots and fills low spots in one pass; while removing rocks and debris. Pure carbide teeth design produces the best possible seeded sub-soil, which promote superior moisture retention and rapid seed growth.

Specifications

Model
23702
Category Name
Lawn / Garden
Year
2026
Sale Type
New
Manufacturer
Toro
Quantity
0
Manufacturer Qty
0
Depth
58.5 in. / 148 cm
Width
58.5 in. / 148 cm
Height
18.5 in. / 47 cm
Models
Dingo 320-D, Dingo 323, Dingo TX 1000, Dingo TX 1000 TURBO, Dingo TX 1300, Dingo TX 427, Dingo TX 525, Dingo TX 700, eDingo 500
Weight
487 lbs / 220.9 kg
UPC/EAN
21038237022
Raking Width
48 in. / 121.9 cm
Roller Angle
30 degrees
Offset Distance
3 in. / 7.6 cm

features

Toro Power Box Rake AttachmentAdjustable Wheels

Makes depth changes easy. Set adjustable wheels low to quickly remove existing landscapes. Easily adjust depth to fill, plane and pulverize soil.



literature

Name Link
Operator's Manual Download

Documents

  • 229221.pdf

    229221.pdf
