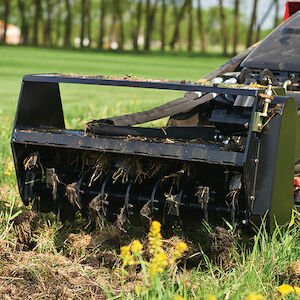

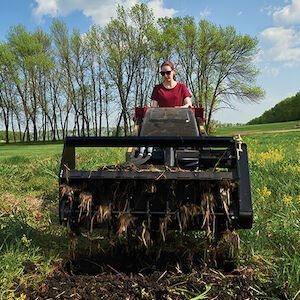

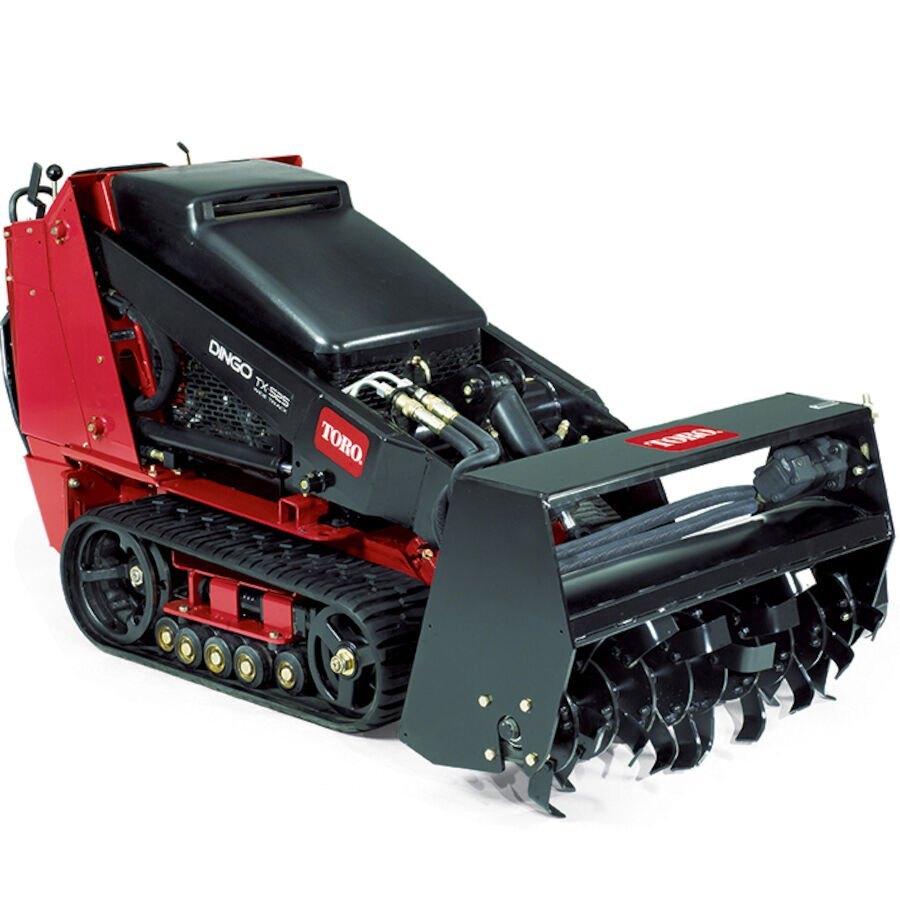

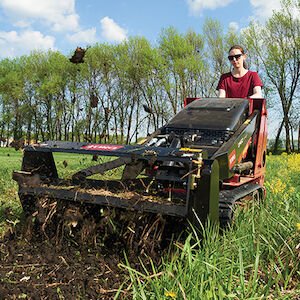

Toro Tiller Attachment

Hydraulically variable ground speed Hardened tines for maximum life Reversible tiller direction The Toro Dingo tiller attachment greatly increases the productivity and performance of your Dingo system. Break through hard soil conditions up to 6" (15.2 cm) deep. Avoid clogging the tiller by using one easy hand control to reverse the direction of the tiller to clear jams from rocks and deb...

Overview

  • Hydraulically variable ground speed
  • Hardened tines for maximum life
  • Reversible tiller direction
The Toro Dingo tiller attachment greatly increases the productivity and performance of your Dingo system. Break through hard soil conditions up to 6" (15.2 cm) deep. Avoid clogging the tiller by using one easy hand control to reverse the direction of the tiller to clear jams from rocks and debris.

Specifications

Model
22445
Category Name
Lawn / Garden
Year
2026
Sale Type
New
Manufacturer
Toro
Quantity
0
Manufacturer Qty
0
Shaft
1.5 in. / 3.8 cm
Width
44 in. / 111.8 cm
Height
26 in. / 66.0 cm
Length
20 in. / 50.8 cm
Models
Dingo 320-D, Dingo 323, Dingo TX 1000, Dingo TX 1000 TURBO, Dingo TX 1300, Dingo TX 427, Dingo TX 525, Dingo TX 700
Weight
363 lbs / 165 kg
UPC/EAN
21038224459
Construction
Fabricated, Welded Steel Frame
Working Depth
6 in. / 15.2 cm
Working Width
40 in. / 101.6 cm
Mounting Frame
Dingo® Quick-Attach Mount Plate, Fabricated, Welded Base
Quick Couplers
Dripless, Flush Face Quick Couplers
Number Of Teeth
36

features

Toro Tiller AttachmentHydraulic Drive

Maximizes performance by supplying optimal power to the Dingo Tiller at all times. It also allows you to reverse the tiller direction to keep working through the toughest conditions if clogging occurs.

Toro Tiller AttachmentHardened Tines

Maximize life and help dig in a variety of conditions. The tines are "bolt on" so they are easy to replace when worn.

Toro Tiller AttachmentReverse Tiller Direction

Easy hand control reverses the tiller direction if clogging occurs to continue working through the toughest conditions.



literature

Name Link
Operator's Manual Download

Documents

  • 226335.pdf

    226335.pdf
